WC Fab Oil Line Kit, for S400 Single Turbo LB7/LLY/LBZ/LMM/LML Duramax

Thoroughbred Sku #: WCF100397

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


$290.03

free-shipping-no-handling
NOTE: These products are made to order and can experience extended lead times.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: WC Fab Oil Line Kit, for S400 Single Turbo LB7/LLY/LBZ/LMM/LML Duramax
Manufacturer: WC Fab
Manufacturer Part #: WCF100397
Thoroughbred Diesel Part #: WCF100397
Fitment Notes: 2001-2016 LB7/LLY/LBZ/LMM/LML Duramax

LB7/LLY/LBZ/LMM/LML Duramax S400 Single Turbo Oil Line Kit, Complete Oil Line Kit for LB7/LLY/LBZ/LMM/LML Duramax Engine with S400 Turbo mounted on 6" tall pedestal. Also compatible with 2001-2004 LB7 Duramax S300 Turbo.

Note (Current WC Fab Lead Times):

  • In Stock Items: 7-10 Business Days
  • Most Built to Order Powder Coated Items: 10-15 Business Days
  • Traction Bars: 10-15 Business Days

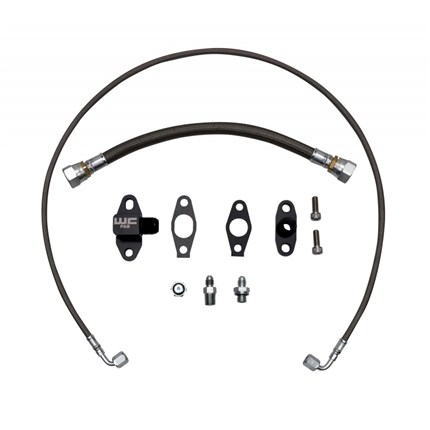

Features:

  • Parker stainless braided #10 drain and #4 Feed Line
  • Plug for OEM feed location in valley
  • Fitting for turbo feed
  • Fitting for engine block oil galley
  • Turbo drain flange and fitting
  • Flange for rear engine cover

Reviews

  • I am interested in your WC Fab LLY turbo line upgrade. Where does the oil feed line tap into engine specifically for oil pressure? The locations are unclear. Is the kit complete? Thanks

    Mick Hayes | 5/6/2024 Fitting for engine block oil galley, yes complete kit
