Synergy Titan Series Chromoly Tie Rod - 18-26 Jeep Wrangler JL | Gladiator JT

Product Name: Synergy Titan Series Chromoly Tie Rod - 18-26 Jeep Wrangler JL | Gladiator JT
Manufacturer: Synergy
Manufacturer Part #: 8802-175
Thoroughbred Diesel Part #: SYN8802-175
Fitment Notes: 2018-2026 Jeep Wrangler JL | Gladiator JT

Introducing the Titan Series — your Jeep’s biggest steering upgrade yet that brings unmatched strength and confidence using the Synergy 2018-2026 Jeep JL / JLU / JT Titan Series Tie Rod — the hardiest tie rod ever built for the Jeep platform. Engineered for both hardcore wheelers who demand maximum durability and daily drivers who need reliability, this tie rod features massive 1.75" heat-treated chromoly construction, delivering extreme strength where it matters most.

Outfitted with Synergy’s signature metal-on-metal tie rod ends, this setup delivers exceptional longevity and precision. Unlike weaker tie rod ends that contain a nylon liner, have extended cast housings susceptible to trail damage, or require modifications to install, our metal-on-metal ends are fully greaseable and engineered to perform under extreme loads - providing unmatched durability and steering feel in all conditions.

Whether you're crawling over rocks or cruising back to basecamp, the Titan Series Tie Rod is ready for the challenge. It’s a direct bolt-in replacement for your stock tie rod and a serious upgrade over lesser aftermarket alternatives — built to take the hits and keep your steering tight and responsive in the toughest conditions.

Pro tip: Pair this tie rod with our Heavy Duty Drag Link and Heavy Duty Track Bar for the toughest steering kit on the market!

Min/Max Length:
Measured in a straight line from center of bolt hole to center of bolt hole

Min collapsed length: 59"
Max extended length: 61"

Includes:

(1) Synergy Heavy Duty Heat Treated Tie Rod
(1) Grade 8 Hardware Kit

Notes:

• Replacement Tie Rod Ends:
  • 4138-L - Driver
  • 4168-L - Passenger
• Requires maximum backspacing of 4.5"
• Requires clamp part number 4050-75 and stud part number 8806-01 to mount a steering stabilizer in the high mount location
• We recommend installing a drop pitman arm and front track bar relocation bracket bolt on part number 8855-11 or weld on part number 8812-05 for lifts over 4 inches
• Cannot guarantee fitment with aftermarket diff covers
• Known compatibility with the Currie 5-Lug Dana 60 front axle; compatibility with all aftermarket axles unknown

Synergy Features:

• Heavy duty 1.75" USA made heat-treated chromoly offers extreme strength and reliability, providing a stronger connection to the road and trail, unmatched durability, and preventing unwanted wandering
• Heat-treated chromoly construction improves tie rod stiffness and steering feel, and eliminates any chance of bending or breaking - even on the toughest of trails

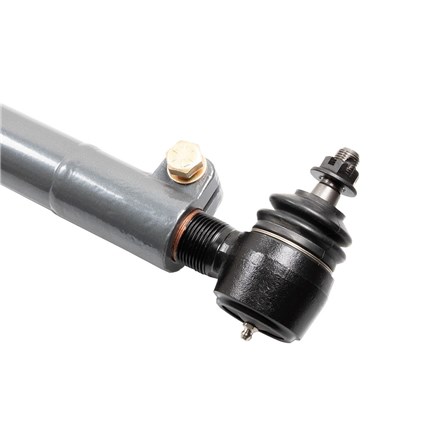

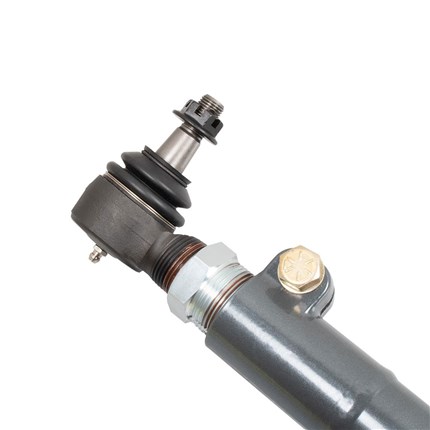

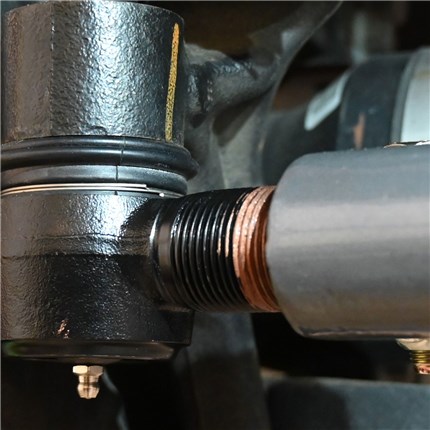

• Synergy metal on metal tie rod ends are stronger and more durable than stock, greaseable for easy maintenance, and feature a heat treated ball bearing and forged bearing housing for maximum durability
• Single plane tie rod ends eliminate unwanted tie rod flop and prevent the "dead spot" commonly associated with hydro assist steering
• Kit is fully adjustable while installed in the vehicle, fully sealed from the elements, and prevents alignment creep by eliminating jam nuts - thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly

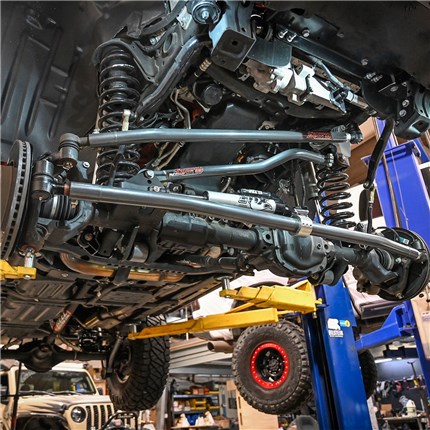

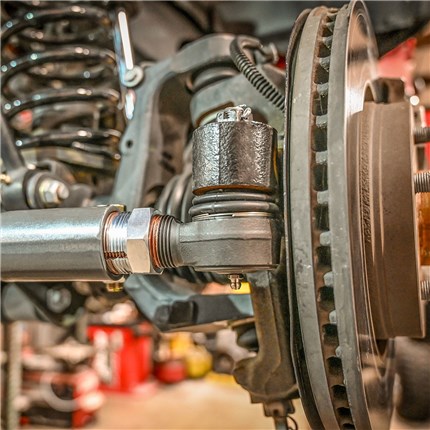

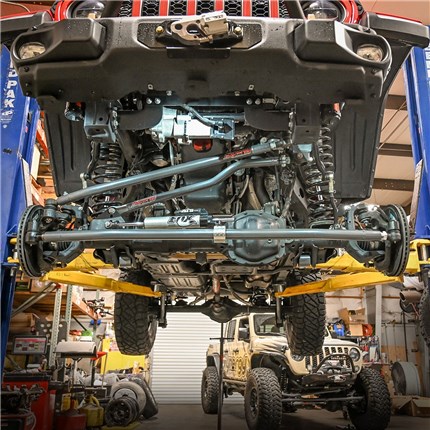

• Bolts to factory locations with no drilling required and compatible with stock wheels and tires
• Engineered and precision bent from USA made 1.75" x 0.188 wall heat treated chromoly tubing for maximum strength
• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Retains factory mounting locations and mounting hardware
• Synergy Dual Durometer Bushings with Teflon Bearing surface for a maintenance free design focusing on performance, articulation, longevity, and ride quality
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly eliminates jam nuts and allows for easy adjustability
• 100% bolt-in components assures and easy, trouble free installation with the use of basic hand tools
