Synergy Steering Kit (Tie Rod, Drag Link) - 03-13 Ram 1500-3500

Product Name: Synergy Steering Kit (Tie Rod, Drag Link) - 03-13 Ram 1500-3500
Manufacturer: Synergy
Manufacturer Part #: 8525-00
Thoroughbred Diesel Part #: SYN8525-00
Fitment Notes: 03-13 Ram 1500-3500

The Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Steering Kit is a heavy duty bolt-on replacement for the stock steering that requires no drilling or reaming! Updating it to the factory T-style steering design eliminates the toe change common to the old Y-style kits, without the bump-steer "crossover" steering tends to produce. We use low misalignment tie rod end boots on our heavy duty tie rod ends to prevent the dead zone in your steering that creates the unwanted tie rod "flop". USA made 1.5" x .250 wall and 1.75 x .188 wall DOM tubing is used to prevent bending or breaking, giving you the confidence to cruise, haul, and wheel wherever you go. For the strongest, most reliable upgrade in steering feel, the complete kit is offered with the Synergy Heavy Duty Tie Rod, Drag Link, and the choice of either a single Synergy Tuned Fox IFP Stabilizer or Dual Stabilizer shock(s).

Notes:

• For 03-08 trucks using the stock pitman arm, switching to the Mopar pitman arm for 08.5+ trucks is recommended if not already equipped - Mopar P/N: 68039930AA
• New single plane tie rod end - part number 4167-L - is not compatible with the metal misalignment caps (part number 4134-02)
  • If upgrading to the new single plane tie rod end on older model tie rods that include the metal caps, the opposing tie rod end will require a new poly boot part number 4131-01
  • If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Known compatibility with aFe Power differential cover; We cannot guarantee fitment with all aftermarket diff covers
• Single stabilizer applications require the Steering Stabilizer Bracket, part number 8568-10
• Dual Stabilizer Applications require (2) Steering Stabilizer Clamps, part number 4050-50
• Recommended Fox Steering Stabilizers:
  • IFP - Internal Floating Piston (6401-01),
  • TS - Through Shaft (6402-03),
  • ATS - Adjustable Through Shaft (6403-03)
• Synergy High Performance Grease recommended to be used with all Synergy Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize to be used with all threaded components

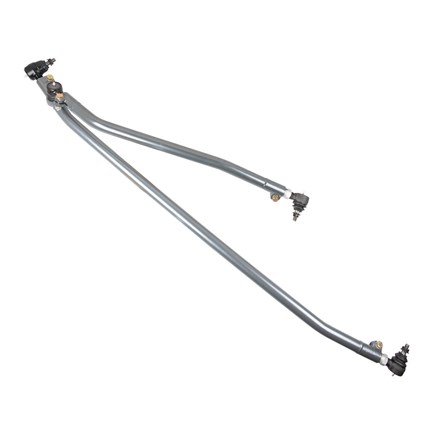

Includes:

• (1) 8567-11 - Heavy Duty Drag Link
• (1) 8568-21 - Heavy Duty Tie Rod

Benefits:

• Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
• Heat treated tie rod is over 200% stronger than OEM and formed post heat treating for superior strength
• Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman arm
• Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
• Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
• Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
• Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
• Provides 2" of additional ground clearance from stock while adding critical strength
• Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX Stabilizers, or other aftermarket stabilizers with 1/2" mounting bolts
• Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep

Synergy Features:

• Drag link is precision bent from 1.5" x .250 wall USA made DOM
• Tie rod is engineered and bent from 1.5" x .188 wall heat treated 4130 chromoly
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable  tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
• For more information on Synergy call us at 1-859-737-4966
