Mishimoto Intercooler w/Pipe & Boot Kit - SILVER - 10-12 Dodge Cummins

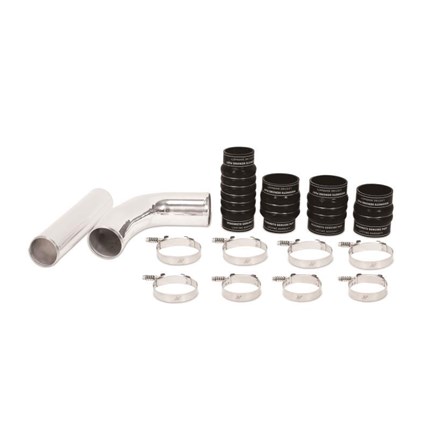

Mishimoto has released a performance intercooler kit for the 2010–2012 Dodge 6.7L Cummins. This Cummins performance kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, reduce EGTs, and support your truck at any power level. The first key component is the Mishimoto 6.7L Cummins Intercooler Piping kit; our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow. The piping is constructed of mandrel-bent 3.5” aluminum polished to a mirror finish. This Cummins performance kit includes Mishimoto silicone boots with DuraCore™ technology and Mishimoto Constant Tension T-Bolt Clamps for accurate and consistent holding force.

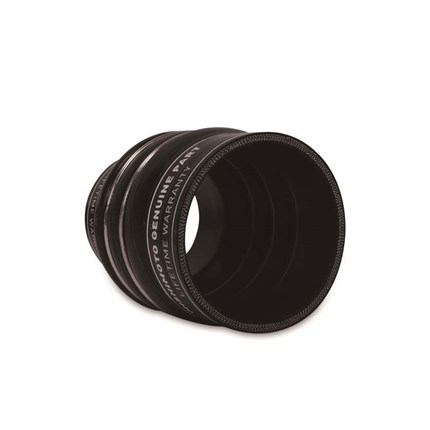

Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.

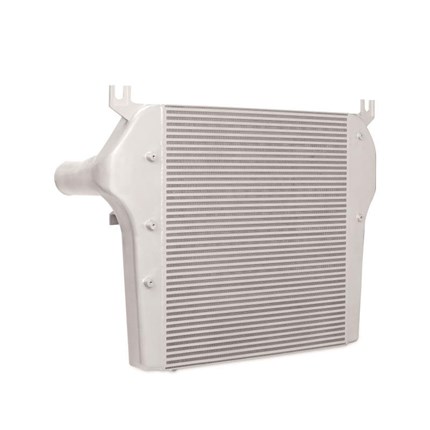

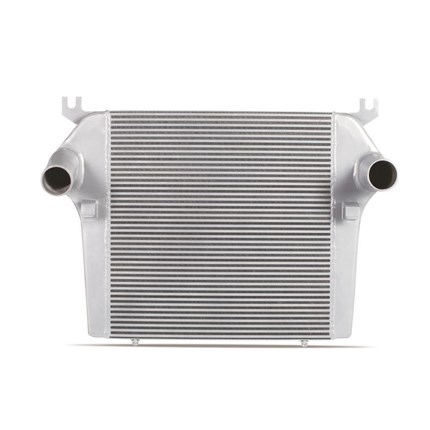

This package is rounded out with the Mishimoto 6.7L Cummins Intercooler featuring extremely durable cast aluminum end tanks and a bar-and-plate core, all designed to provide cool, dense air to your engine. Our Cummins performance intercooler features an increase in core volume and reduces pressure drop, which results in an overall increase in engine efficiency. All the components in this kit are engineered to last, just like your truck. Offered with either a Sleek Silver or Stealth Black core, the Mishimoto 6.7L Cummins Intercooler kit, like all of our Dodge Ram performance parts, is protected by the Mishimoto Lifetime Warranty. Whether your Cummins is stock or modified, trust Mishimoto and our line of Dodge Ram performance parts to keep your Dodge cool.

Features:

• Direct fit, mounts in the stock location
• Bar-and-plate construction with cast aluminum end tanks
• 52% greater internal volume than stock
• 3" core is 100% thicker than stock
• End tanks strategically designed for optimal airflow
• Internal fins designed for maximum heat transfer with minimal pressure drop
• Aluminum intercooler pipes replace weak factory plastic cold-side pipe and small diameter hot-side pipe
• Provides improved airflow and lowers intake air temperatures
• Mandrel-bent polished aluminum pipe eliminates restrictive bends
• Includes Mishimoto Silicone Boots with DuraCore™ technology and Mishimoto Constant Tension T-bolt Clamps
• Sleek Silver or Stealth Black intercooler options available
• Mishimoto Lifetime Warranty

Tech Specs:

• INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
  These clamps have an operating range of 18-35 in-lbs (2-4N*M).
  Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
• PIPE DIAMETER Hot-Side: 3.0"
  Cold-Side: 3.5"
• CONSTANT TENSION T-BOLT CLAMPS SPECS (3) 3.25” Constant Tension T-Bolt Clamp
  (5) 4.0” Constant Tension T-Bolt Clamp
• SILICONE BOOTS WITH DURACORE SPECS Boot 1: 3.0”
  Boot 2: 3.0”–3.5”
  Boot 3: 3.5”
  Boot 4: 3.5”
• CORE THICKNESS 3.15"
• TANK WALL THICKNESS 4 mm
• OUTLET 3.5"
• CORE LENGTH 26.3"
• CORE HEIGHT 26.7"
• CORE WIDTH 3.15"
• INLET 3.5"
• CORE SIZE 26.3" x 26.7"
• OVERALL WIDTH 11"
• OVERALL HEIGHT 28.75"
• OVERALL LENGTH 38.75"
• CONSTRUCTION Bar-and-Plate

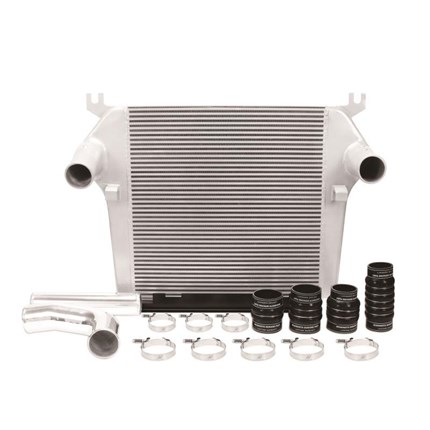

Includes:

• (1)Mishimoto Intercooler

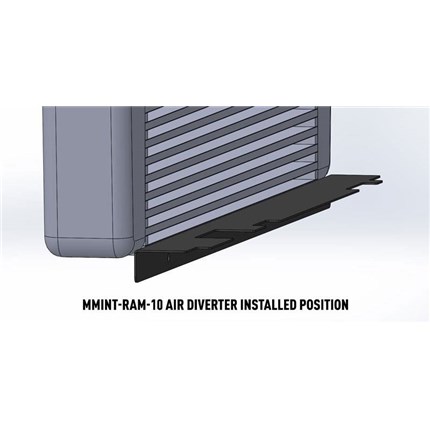

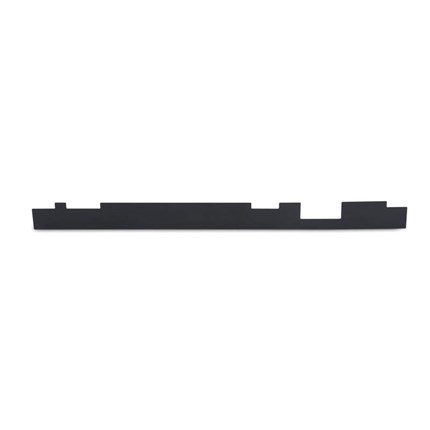

• Air Diversion Panel
• (4) Silicone Boots with Duracore™ Technology
• (8) Constant Tension T-Bolt Clamps
• (2) Aluminum Pipes
• (2) Aluminum Mishimoto M Logo Badges
• Mishimoto Lifetime Warranty

Note: Disconnecting the A/C lines is necessary to remove the stock intercooler. It is recommended that the vehicle is taken to a certified A/C repair/service shop to have the A/C refrigerant properly evacuated before removing any stock intercooler components. Relocation of the power steering cooler may be needed for H.O. (High Output) models.
