Thoroughbred Sku #: DVDDD-OBS-HVFDK-BM Manufacturer Sku #: DD-OBS-HVFDK-BM
Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit
$1,454.95
1994 - 1997 Ford E Series Van
1994 - 1997 Ford F250
1994 - 1997 Ford F350
1994 - 1997 Ford F450

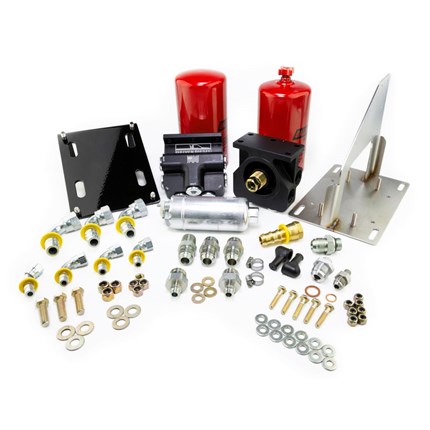

Product Name: Driven Diesel OBS High Volume Fuel Delivery Kit (Bosch 200) - 94-97 Ford Powerstroke 7.3L Manufacturer: Driven Diesel Manufacturer Part #: DD-OBS-HVFDK-BM Thoroughbred Diesel Part #: DVDDD-OBS-HVFDK-BM Fitment Notes: 1994-1997 Ford Powerstroke 7.3L
ALL DRIVEN DIESEL HIGH VOLUME FUEL DELIVERY KITS ARE NOW TANK CONNECTION UNIVERSAL. THIS MEANS THAT WE ARE NOT INCLUDING THE TANK CONNECTION (5/8" PICKUP, SUMP, ETC), AND THAT WE HAVE INSTEAD DONE EVERYTHING WE CAN TO MAKE THIS KIT COMPATIBLE WITH EVERY KNOWN TANK CONNECTION OPTION AVAILABLE ON THE MARKET. FOR 94-97 OBS TRUCKS, THIS KIT WILL WORK WITH ANY SUMP WITH A 1/2" FEMALE NPT PORT OR -8 O-RING BOSS PORT, THE DRIVEN DIESEL 5/8" PICKUP TUBE KIT AND FASS PICKUP TUBE KITS.

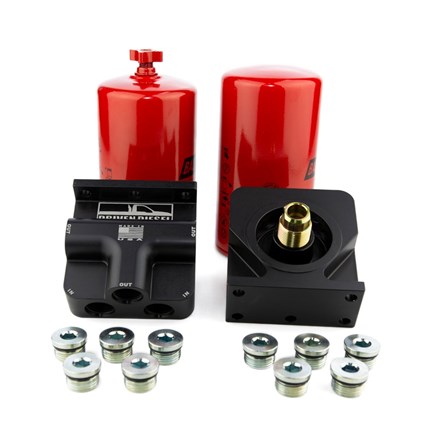

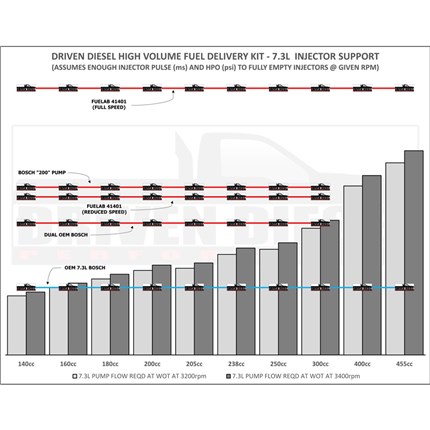

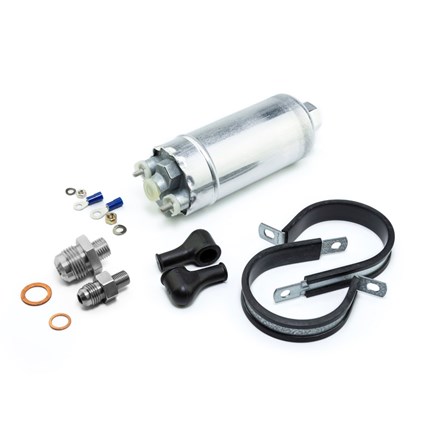

This DRIVEN DIESEL HIGH VOLUME FUEL DELIVERY KIT for 1994-1997 Ford 7.3L OBS Trucks was designed to support everything from high performance street builds to moderate race builds. Built around the Bosch Motorsports "200" fuel pump, this kit will ensure that you have plenty of fuel flow and pressure for up to 300cc injectors with hottest programs available. Coupled with our newly revised Compact Fuel Pump & Filter Mount and Killer Billet Fuel Filter Heads, this kit provides everything you need to feed your high performance 7.3L Powerstroke truck.
Driven Diesel OBS High Volume Fuel Delivery Kit Features:
OBS FUEL TANK NOTICE : High Volume Fuel Pumps CAN NOT be used with the OEM Fuel Tank Selector Valve! Use of this kit REQUIRES that the truck pickup and return all fuel to ONLY ONE TANK, bypassing the fuel tank selector valve completely. Attempting to use the fuel tank selector valve with this kit WILL damage the pump(s) and void the warranty! Additional options for maintaining fuel tank capacity are discussed in the installation instructions.

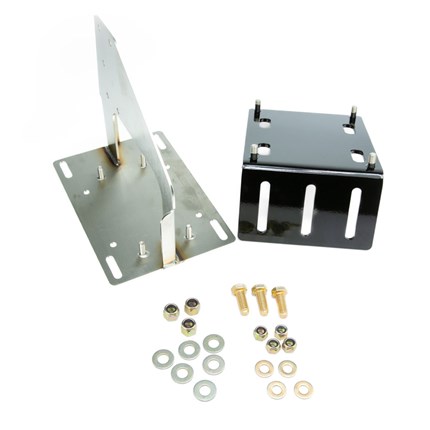

This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you will need to plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting, but we have tested and confirmed that it will fit outside the frame as well.
* COMPATABILITY NOTE : This kit was designed to work with our very popular "7.3L OBS Fuel Bowl Delete" Regulated Return Kit. We supply standard #6AN fittings for making the connection to the fuel inlet at the engine which will mate up perfectly with our 7.3L Fuel Bowl Delete Regulated Return Kit. If you are using this kit with another brand of engine fuel system, make sure that system includes a Fuel Pressure Regulator, you may need additional parts to complete the connection.

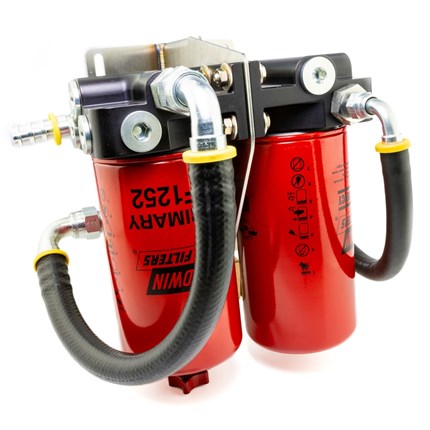

If you need to order replacement fuel filters for this kit, you can find them in the "Related Products" section above. This kit uses the Baldwin BF1252 "Pre-Pump" Fuel Filter/Water Separator and the Baldwin BF7633 "Post Pump" Fuel Filter.
STOCK NOTICE : Due to the number of options within our "High Volume Fuel Delivery System" line, we do not have these kits pre-assembled and ready to ship. Each kit will be BUILT-TO-ORDER, once the order has been received. PLEASE ALLOW 3-5 BUSINESS DAYS FOR ORDER PROCESSING, KIT ASSEMBLY AND SHIPPING. If you have a need that is more urgent, please call our office and discuss it with a member of our staff to confirm that we can meet your deadline before ordering. Thank You for your patience and understanding!
