ATS Extra Deep Transmission Pan - 90-07 Dodge - 3019002116

Thoroughbred Sku #: ATS3019002116
Manufacturer Sku #: 301-900-2116

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm -




View All applications


Product Details

Product Name: Extra Deep Transmission Pan
Manufacturer: ATS
Manufacturer Part #: 3019002116
Thoroughbred Diesel Part #: ATS3019002116
Fitment Notes: 1990-2007 Dodge

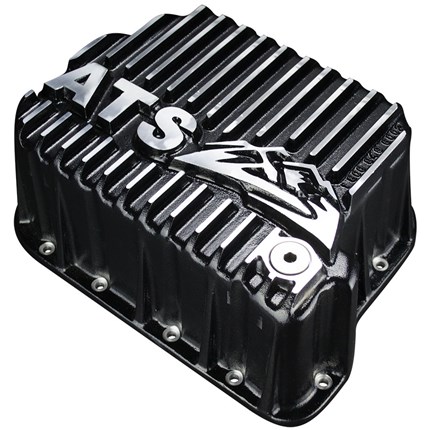

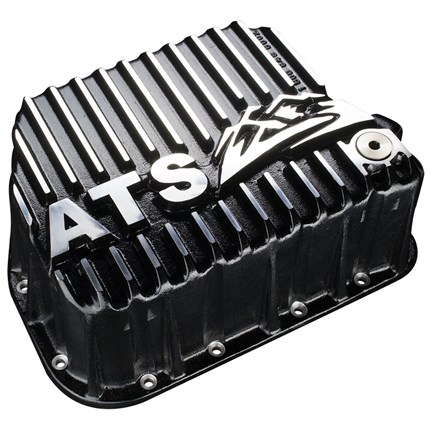

Increase the oil capacity in your transmission using ATS Diesel Performance automatic transmission pans. The additional fluid capacity is designed to help keep the transmission running cooler. Heat is the number-one enemy of a transmission, and the cooler it runs, the longer it lasts! The pans feature a finned design and magnetic drain plug and are tapped for a temperature probe. All ATS Diesel Performance automatic transmission pans are powdercoated black with a machined ATS logo and fins.

The ATS 3019002116 Transmission Pan for your 1990-2007 Dodge 5.9L Cummins adds an additional 5 quarts of fluid capacity over stock. Build from durable aluminum and powdercoated black for superior corrosion resistance this pan will include everything you need for an easy installation.

ATS Deep Tranmission Pans extend oil life and scheduled services, lower transmission heat and make servicing easier.

Deep Pan Features Include:

  • Pre-Tapped For Sensor
  • 5 Extra Quarts of Fluid Over Stock
  • Magnetic 1" Drain Plug
  • Everything You Need For Easy Installation
Q: How much extra fluid does your ATS Deep Pan hold?
A: The ATS Deep Pan holds an extra 5 quarts of fluid for exceptional cooling benefits and increased gear lubrication. This extra fluid also allows for more miles between fluid service.

Q: Does it have a port for a temperature gauge?

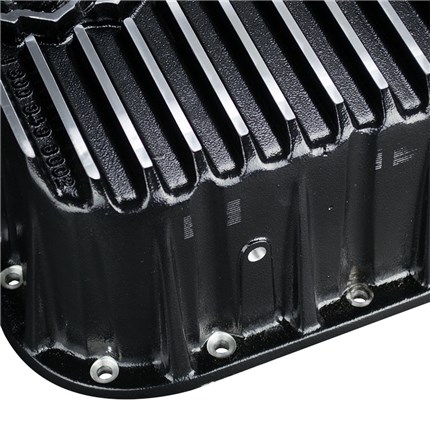

A: Yes it has a 1/8th NPT fitting on the side of the pan for easy installation of a gauge probe.

Q: Does your transmission ATS Deep Pan use a O-Ring or gasket to seal?
A: The transmission ATS Deep Pan uses a gasket to seal the pan to the transmission.

Q: Does the transmission ATS Deep Pan have a filter extender or do I need to purchase bigger filter?
A: The Dodge comes with a block that will extend the reach of your stock filter. Ford Deep Pans are designed to work with the stock filter as well, so no need to buy a different filter. The Duramax requires a deeper filter, but this filter is included with the ATS Deep Pan.

Q: How much further does the transmission ATS Deep Pan extend over stock?
A: Depends on your vehicle, but the extra depth ranges from 2-4 inches.

Q: Does your ATS Deep Pan have a drain plug?
A: It not only has a drain plug, but a magnetic drain plug.

Q: What is your ATS Deep Pan made out of?
A: Aluminum


  • Can you use the factory reusable gasket? And if not where do you get a new gasket when you do a filter change?

    Giovanni | 9/30/2021

    Yes you can reuse the factory gasket.

  • Will this fit on 2wd and 4wd?

    B. Cabaniss | 6/27/2021


  • do i need t buy a bigger pick up to support deeper fluid levels?

    mike Hamby | 4/5/2021

    The pan will come with a block to extend the reach of a stock filter.

  • Does this pan come with a new gasket? Or do you have to buy a gasket?

    Nolan Abernathy | 7/2/2020

    Gasket and hardware included.

  • Will this work on A518/46re and it's there a way to plug the 1/8th sensor hole

    Jason Sampson | 5/15/2020

    No. 47rh and up.

  • Does it come with a new dip stick to indicate the deeper level

    Craig | 3/28/2020

    No,  a longer dipstick will not be needed because the max fill level does not change with the deeper pan.  IE – the top is still the top.

  • Does this pan come with a reusable gasket?

    Fred Lytle | 11/9/2019

    No, the gasket is not reusable.
