PPE 68RFE Transmission Pan (BRUSHED) - 07.5-24 Dodge Cummins 6.7L - 228052110

Product Name: PPE 68RFE Transmission Pan (BRUSHED)
Manufacturer: PPE
Manufacturer Part #: 28052110
Thoroughbred Diesel Part #: PPE228052110
Fitment Notes: PPE 68RFE Transmission Pan (BRUSHED) - 07.5-24 Dodge Cummins 6.7L

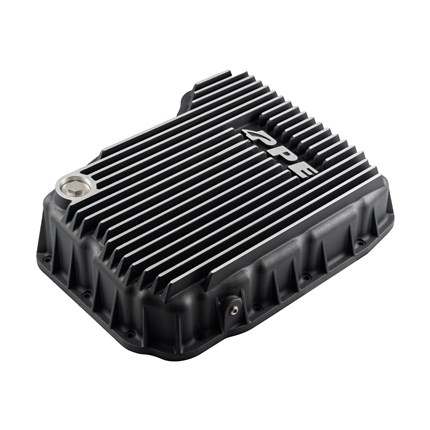

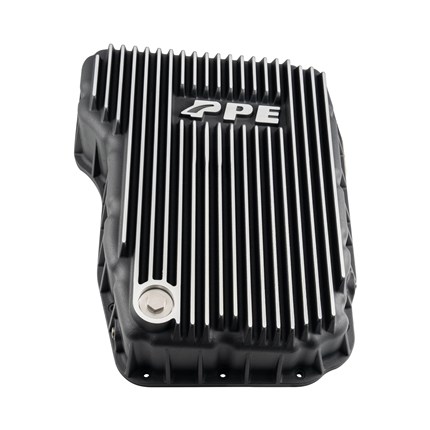

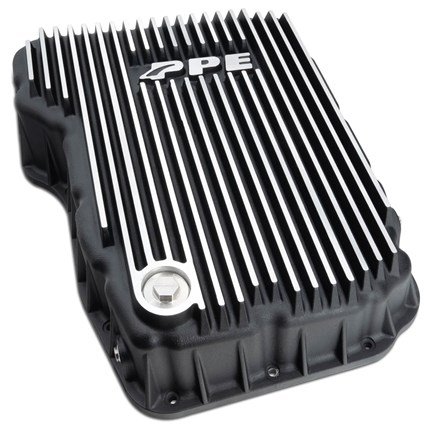

Heavy-Duty Cast Aluminum Transmission Pan

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 3 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

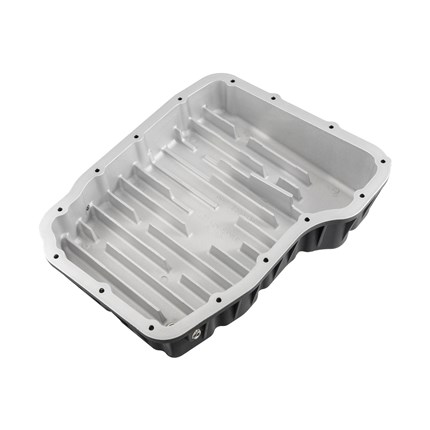

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

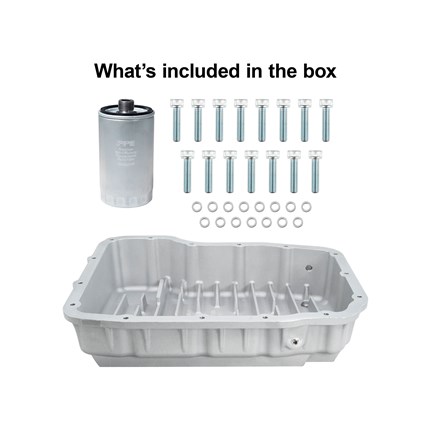

Each transmission pan comes with a PPE Deep Spin-On Filter, SKU 228052150, featuring finer filtration and 57% larger media.

Keep your 6-speed transmission running longer, healthier, and cooler with PPE.

Note: Some applications may require the metal transmission lines to be bent a little bit for extra clearance.

PPE 68RFE Transmission Pan Features:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 3 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Deep one-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Integrated filter supports ensure proper filter placement
• Compatible with OEM gasket and filter
• New deep spin-on filter included (p/n 228052150)
• LIFETIME LIMITED WARRANTY
• For more information on PPE call us at 1-859-737-4966
