bd-1064234FT
bd diesel

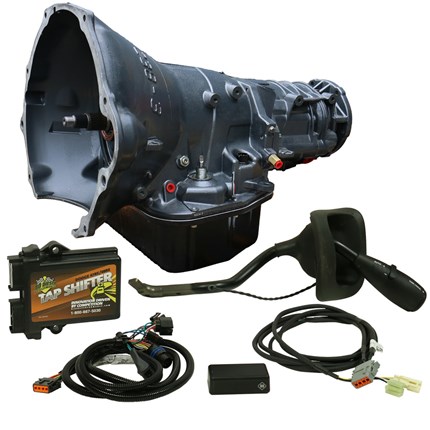

BD Diesel Dodge Transmission Kit c/w Tap Shifter - 2005-2007 48RE 4wd w/TVV Stepper Motor

Thoroughbred Sku #: BDD1064234FT-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit


$5,098.00

+ $200.00 Shipping
NOTE: Shipping costs from using prepaid return labels from BD’s website will be deducted from credit unless otherwise noted.

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: BD Diesel Dodge Transmission Kit c/w Tap Shifter - 2005-2007 48RE 4WD w/TVV Stepper Motor
Manufacturer: BD Diesel
Manufacturer Part #: 1064234FT
Thoroughbred Diesel Part #: BDD1064234FT
Fitment Notes: 2005-2007 Dodge 48RE 4WD

BD Diesel's Dodge Transmission Kit c/w Tap Shifter for 2005-2007 48RE 4WD w/TVV Stepper Motor diesels. Your transmission was only designed to handle the torque and horsepower the stock engine delivers, and in the case of some Dodge models, even the stock torque can present a challenge. So when you start adding power modules, turbo upgrades and other bolt-ons, it's only a matter of time before the transmission wears out and eventually fails.

BD transmissions are built specifically to handle the high torque loads of diesel engines at our state-of-the-art transmission facility. We re-program the valve body for higher line pressure, and add heavy-Duty clutches with up to 25% more material than stock. The stock thrust washers, which disintegrate and leave metal filings in your transmission, are replaced with roller Torrington bearings. We install a new billet input shaft for applications with extra big tires and modified power levels.

BD Diesel Transmission Kit Features:

  • Increase the durability of your drivetrain
  • Provides manual torque converter lock-up clutch control
  • Works with stock shifting and has gear limiting function
  • Sealed plug-in wiring, no cutting or tapping of wires required
  • Includes new model shift lever, BD control module, BD gear selection display and wiring harness
  • Stock thrust bushings replaced with roller Torrington bearings
  • Every transmission is tested on a dyno
  • Upgraded Valvebody
  • Increased line pressure to 190-200psi
  • No shuttle shifting problems
  • Drilled intermediate shaft for increased lubrication
  • Modified manual valve for lube in all positions
  • Billet band strut
  • Billet band lever
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • Clutch Count: FORWARD 5
  • Clutch Count: DIRECT 6
  • High temp/energy Raybestos band
  • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
  • Upgraded governor solenoid
  • Cooler line case saver in every transmission
  • BD auxiliary full flow filter kit for extra protection
  • BD rigid aluminum heavy Duty transmission pan
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Pan adds 2qt extra oil capacity
  • Not warranted for Race or Sled Pull use
  • For more on BD Diesel call us at 1-859-737-4966.

Warranty

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 12-Months
  • 24,000 miles

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

Note

  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty

Reviews

  • I bought a transmission from you in Feb. 2012 and lately I have noticed when I take it out of park and put it in reverse or drive, it takes a minutes or so before it will pull. I have 56k miles on the trans. What could be the problem.

    James Abbott | 6/12/2019

    First thing that we need to do is check trans fluid.  Is the fluid level correct.  That is too long before the truck is in motion and you could be doing damage to the trans.  Give us a call 866 737 4966
