BD Diesel 2Low Unloc - 14-17 Dodge Cummins 2500 4WD | 13-17 Dodge Cummins 3500 4WD

Thoroughbred Sku #: BDD1030705
Manufacturer Sku #: 1030705

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

$148.00

+ Free Ground Shipping

Product Details

Product Name: 2Low Unloc 4WD
Manufacturer: BD Diesel
Manufacture Part #: 1030705
Thoroughbred Diesel Part #: BDD1030705
Fitment Notes: 2014-2017 Dodge Cummins 2500 4WD | 2013-2017 Dodge Cummins 3500 4WD

Vehicle maneuverability is reduced when 4WD modes are engaged as the front and rear axles are directly connected through the transfer case. This makes it very difficult to use the vehicle in low range except in straight lines or slippery conditions.

The BD 2Low Unloc Differential Kit allows the operator to disable the front wheel drive mechanism while full torque is available to the rear wheels. This allows for sharp full-lock turns without the front axles hopping or binding.

When the 2Low Unloc is turned on, the front wheels will NOT be driven delivering normal two wheel drive maneuverability while in low range which is very helpful for backing up trailers, and other special maneuvers.

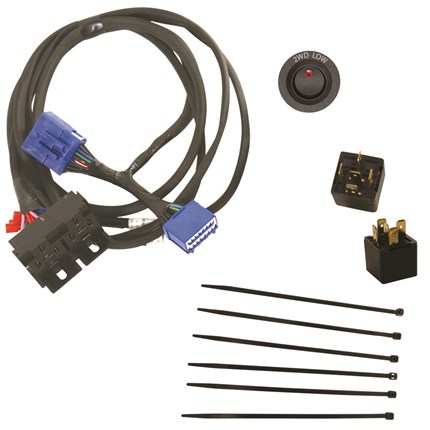

  • Installation is simple, the kit plugs in below the glove box
  • No wire cutting or splicing and no wires through the firewall
  • Kit comes with an illuminated rocker switch for control and to indicate when the front axle is being overridden
  • Designed to allow the operator to manually disable the front wheel drive mechanism by holding the hubs in the free (2WD) mode with the transfer case in 4WD low range
  • By allowing the front wheels to be disengaged, maximum torque is available to the rear wheels
  • This will also allow for sharp "All The Way Over" turns without the front axle u-joint hopping or binding
  • With this kit installed, the front wheels will NOT be driven through the transfer case
  • Allows to have full power and torque while in a high gear reduction applied to the rear axle(s) only
