Zone Offroad 7" Standard Lift Kit - 20-22 Ford F250/F350 Super Duty Diesel

Product Name: Zone Offroad 7" Standard Lift Kit - 20-22 Ford F250/F350 Super Duty Diesel
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONF62FD
Fitment Notes: 2020-2022 Ford F250/F350 Super Duty Diesel

Step up your game with these 7" standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks. Kits include a 5year/60,000mile drivetrain warranty.

Important Notes

• DIESEL MODELS ONLY
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
• Fits SRW models only

Recommended Tires & Wheels
(Trimming may be required)

• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 20 x 10 and 4.5 in. Backspace

Shock Option

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

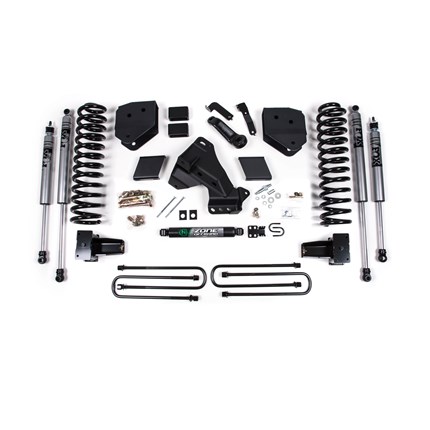

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Zone Offroad Features:

• Corrects suspension geometry with high strength radius arm drop brackets.
• Forged pitman arm to correct steering angles.
• Heavy duty fabricated track bar relocation bracket to re-center front axle.
• Full length Diesel/ Gas specific coil springs for a smooth ride
• For more information on Zone Offroad call us at 1-859-737-4966
