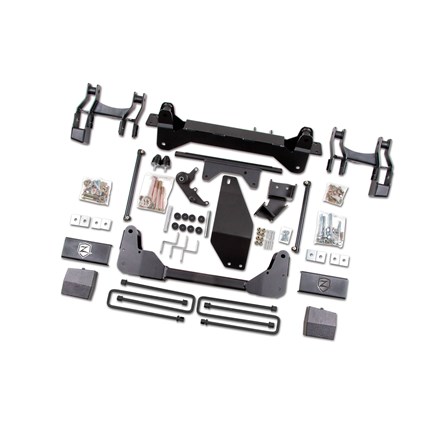

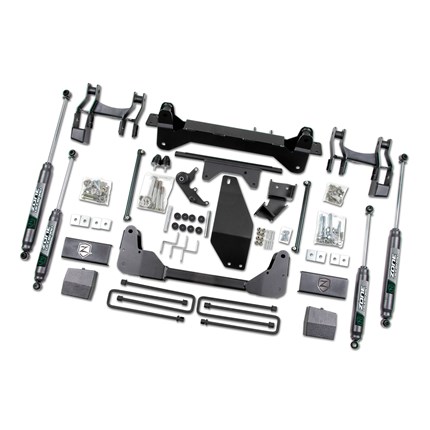

Zone Offroad 6" Torsion Bar Drop Lift Kit - 88-98 Chevy/GMC 1500/2500 6 Lug 4WD

Product Name: Zone Offroad 6” Torsion Bar Drop Lift Kit - 88-98 Chevy/GMC 1500/2500 6 Lug 4WD
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONC18898GM
Fitment Notes: 1988-1998 Chevy/GMC 1500/2500 6 Lug 4WD

Turn heads and drop jaws when you lift your Chevy with this 6" Lift Kit. This kit has everything you need to clear 35" tires and all the pieces and parts for optimal steering and drivetrain geometry. Fits 4WD 1988 - 1998 Chevy/GM 6 lug K1500 and K2500 truck & SUVs.

Important Notes

• Auto-trac/Front Driveshaft? Models equipped with an auto-trac transfer case may require a new front driveshaft. Auto-trac transfer cases can be identified by a badge on the rear case that reads “NP246”. In addition, the dash mounted display will show the Auto 4WD symbol. Cases with “NP243” are not auto-trac.
• Requires exhaust modification to clear the front driveshaft. See installation instructions for more information.
• Not recommended for Tahoe/Yukon 4 door models.
• Does NOT fit 8 lug models.

Recommended Tires & Wheels
(Trimming may be required)

• 35 x 12.5 with stock and Stock in. Backspace
• 35 x 12.5 with 17 x 9 and 6 in. Backspace
• 35 x 12.5 with 20 x 9 and 6 in. Backspace

Zone Offroad Features:

• Heavy-duty differential skid slate improves off-road protection.
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
• Lift system does not change the front track width of the vehicle.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Relocation bracket allows for reinstallation of the factory spare tire.
• Upper control arm relocation brackets correct front suspension geometry.
• For more information on Zone Offroad call us at 1-859-737-4966
