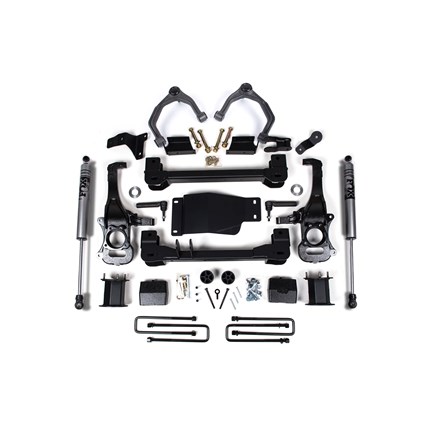

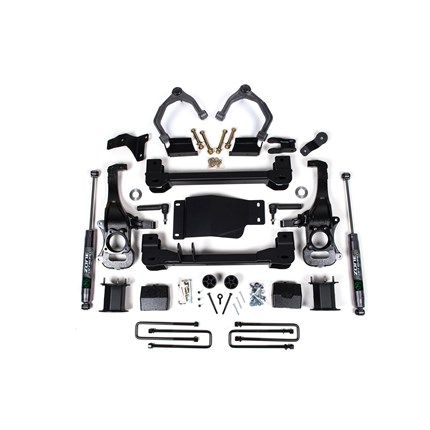

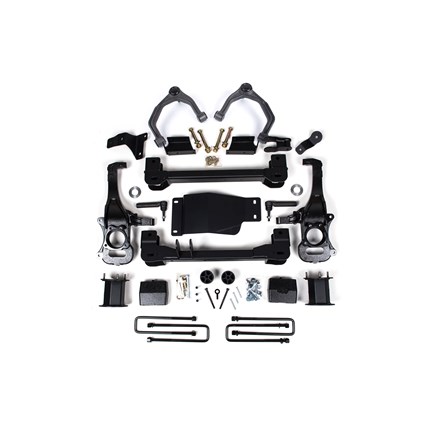

Zone Offroad 6" Suspension Lift Kit - 19-24 Chevy Silverado/GMC Sierra 1500 4WD

Product Name: Zone Offroad 6” Suspension Lift Kit - 19-24 Chevy Silverado/GMC Sierra 1500 4WD
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONC681924GM
Fitment Notes: 2019-2024 Chevy Silverado/GMC Sierra 1500 4WD

Take your Silverado/Sierra 1500 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, Adventure Series upper control arms and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Important Notes

• Fits Gas and Diesel Models.
• Optional front skid plate will not work with 2.7L Turbo or Diesel Engines.
• Requires frame bracket modification.
• Will NOT work with Adaptive Ride Control (ARC) equipped models. (Use ZONC70 or ZONC72).
• Will NOT work with Trail Boss or AT4 models.
• Will NOT work with 2019-2020 1500 Classic Models.
• Will NOT work with Silverado ZR2 or Sierra AT4X models (Use ZONC73).
• If equipped with a mono-leaf rear spring, please use u-bolt part #UBT4064 (Qty 4 required)
• This system has not been tested on models equipped with Super Cruise.

Wheel and Tire:

• Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels CAN be reinstalled.
• 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.

Chevy:

• 37 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS**
• 35 x 12.50 on 17x8, 17x9 w/ 4.5" BS*
• 35 x 12.50 on 20x9, 22x9 w/ 4.5-6.25" BS*

    *Trimming may be required

    ** Trimming is required

GMC:

• 295/70 on 17x8, 17x9 w/ 4.5" BS*
• 295/65 on 20x9 w/ 4.5-6.25" BS*
• 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS*

    *Trimming may be required

Shock Option

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting silver coated finish

Zone Offroad Features:

• High strength crossmembers to correct lower control arm positioning.
• Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility.
• Top mounted strut spacers to provide lift and install easily.
• Differential skid plate for additional off-road protection.
• Adventure Series upper control arms for improved strength and durability.
• Rear lift blocks and u-bolts to lift and level the stance.
• Sway bar, brake line and bump stop relocation brackets to correct operating angles
• For more information on Zone Offroad call us at 1-859-737-4966
