Zone Offroad 6" Suspension Lift Kit - 19-23 RAM 1500 & Rebel 4WD

Product Name: Zone Offroad 6" Suspension Lift Kit - 19-23 RAM 1500 & Rebel 4WD
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZOND961923DG
Fitment Notes: 2019-2023 RAM 1500 & Rebel 4WD

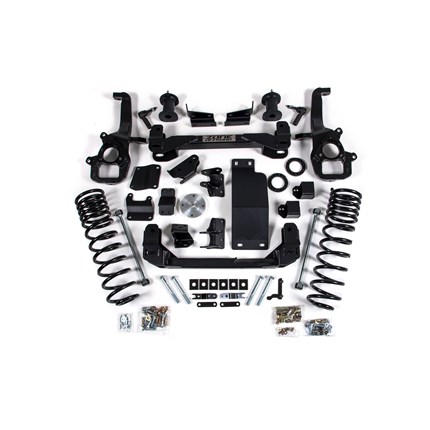

Take your RAM 1500 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Important Notes

• Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
• Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
• Stock 20s can be reinstalled with factory tire size.
• This kit will NOT work on Diesel models.
• Does NOT work for models with factory rear airbag suspension.
• If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
• *IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.

Recommended Tires & Wheels
(Trimming may be required)

• 37 x 12.5 with 20 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5.5 in. Backspace

Shock Option

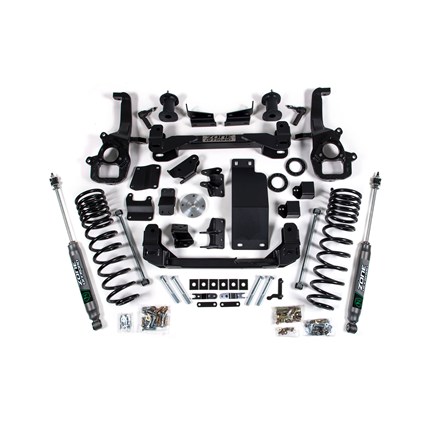

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

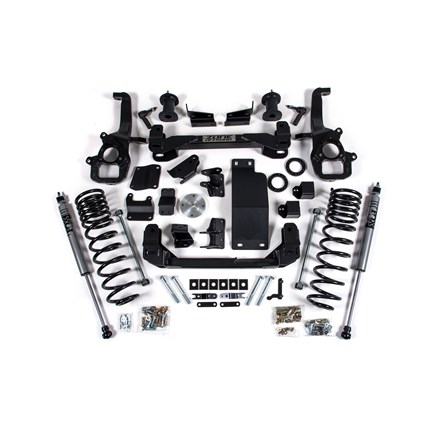

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting silver coated finish

Zone Offroad Features:

• Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
• Heavy-duty differential skid slate improves off-road protection.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• Top mount strut and pre-load spacers set ride height and maintain ride quality.
• 5" rear coil springs maintain ride quality and load capacity.
• For more information on Zone Offroad call us at 1-859-737-4966
