Product Details

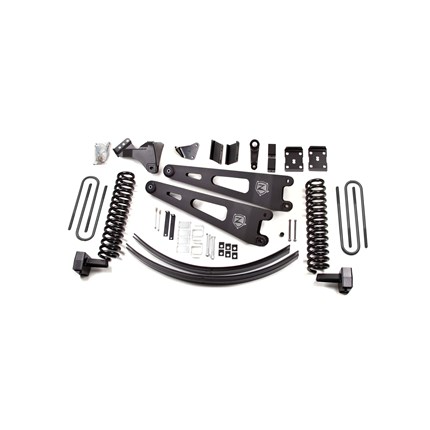

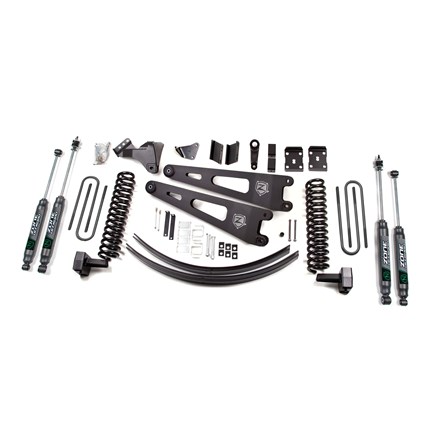

Product Name: Zone Offroad 6" Radius Arm Lift Kit - 08-10 Ford F250/F350 Super Duty 4WD (Gas)
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONF370810FD
Fitment Notes: 2008-2010 Ford F250/F350 Super Duty 4WD (Gas)

When you go big you can go anywhere. This 6" Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 37" tires. Get the look and performance you want out of your 4WD 2008 - 2010 Ford F-250 / F-350.

Important Notes

  • Although extremely rare, front and/or rear drive-line vibration may occur and require drive-line modification.
  • Factory wheels fit when paired with factory / original equipment tire size.
  • This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
  • This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
  • Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

Recommended Tires & Wheels
(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Zone Offroad Features:

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
  • Sway bar relocation brackets maintain operating angle for reduced body roll.
  • For more information on Zone Offroad call us at 1-859-737-4966
