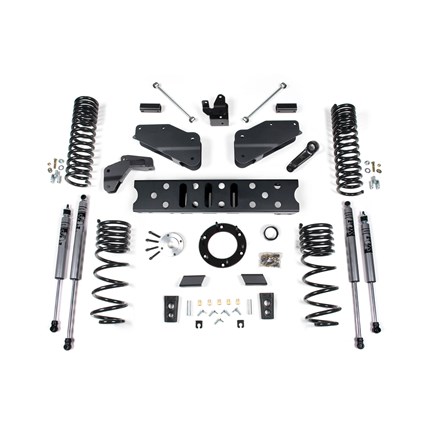

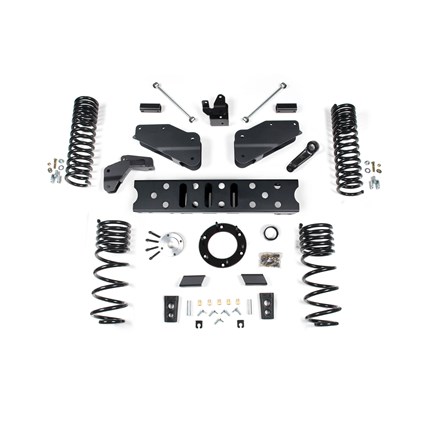

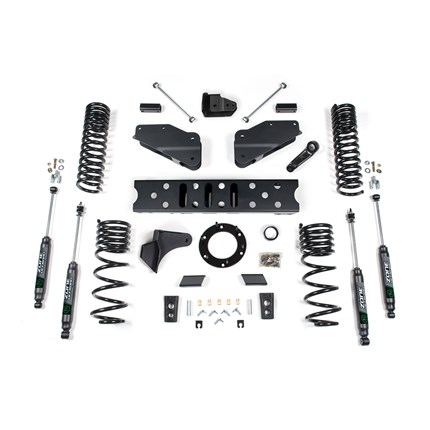

Zone Offroad 6.5" Standard Lift Kit - 19-23 RAM 2500 4WD

Product Name: Zone Offroad 6.5” Standard Lift Kit - 19-23 RAM 2500 4WD
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZOND1171923
Fitment Notes: 2019-2023 RAM 2500 4WD

Take your RAM 2500 to new heights with this 6.5" standard lift kit from Zone Offroad. Kits include everything needed from full length coil springs and radius arm drop brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Important Notes

• Will not fit rear air-ride equipped models.
• Kit designed for diesel models only.
• Does not fit Powerwagon Models.
• Does not fit Vehicles with a Manual Shift Transfer Case.
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)

Recommended Tires & Wheels
(Trimming may be required)

• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5.5 in. Backspace

Shock Option

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting silver coated finish

Zone Offroad Features:

• High strength progressive rate front coil springs for a great ride on any terrain.
• Radius arm drop brackets to correct caster and maintain suspension geometry.
• HD track bar relocation bracket to correctly position front axle under the truck.
• Forged drop pitman arm to correct steering angles.
• Front sway bar correction to maintain handling performance.
• HD transmission crossmember and t-case indexing ring to correct front drive-line angles.
• Nitro series gas or FOX adventure series IFP gas shocks to improved ride and off-road performance.
• Allows clearance for up to 37" tires
• For more information on Zone Offroad call us at 1-859-737-4966
