Zone Offroad 6.5" Lift Kit with Replacement Strut - 14-18 Chevy/GMC Silverado/Sierra 1500 4WD

Thoroughbred Sku #: ZONC591418GM

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Select a Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

There are no vehicles for this group item.

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

free-shipping-no-handling

Product Details

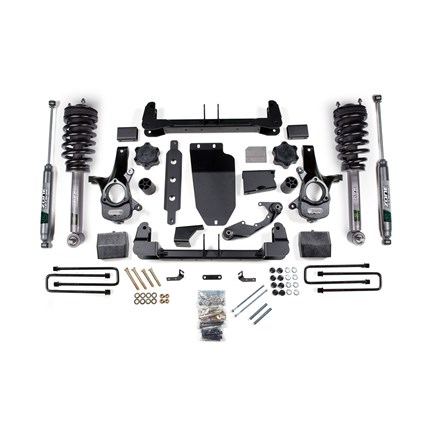

Product Name: Zone Offroad 6.5” Lift Kit with Replacement Strut - 14-18 Chevy/GMC Silverado/Sierra 1500 4WD
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONC591418GM
Fitment Notes: 2014-2018 Chevy/GMC Silverado/Sierra 1500 4WD

Take your Silverado/Sierra 1500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Important Notes

  • Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. ; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
  • Crew Cab? Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
  • All wheel drive models may require front CV driveshaft. See installation instructions for more information.
  • Will NOT fit models equipped with MagneRide magnetic ride control.
  • Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
  • For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.75" backspacing.

Recommended Tires & Wheels
(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5.25 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Zone Offroad Features:

  • Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
  • FMVSS No.126 compliant to work with your vehicle's stability & traction control systems without lighting up your dash like a Christmas tree.
  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.
  • Proudly made in the USA.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Weld-in frame support plate for additional strength.
  • For more information on Zone Offroad call us at 1-859-737-4966
