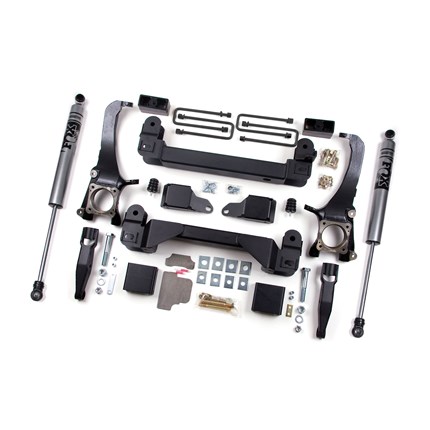

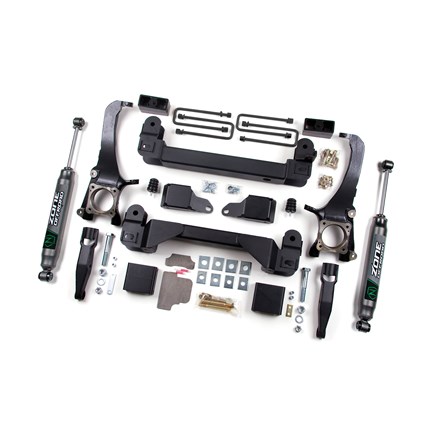

Zone Offroad 5" Suspension Lift Kit - 07-15 Toyota Tundra

Product Name: Zone Offroad 5" Suspension Lift Kit - 07-15 Toyota Tundra
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONT10715TT
Fitment Notes: 2007-2015 Toyota Tundra

The Tundra has some serious power, take advantage of it with this 5" Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together. Fits 2007 - 2015 Toyota Tundra.

Important Notes

• Will NOT work on 2015 TRD Pro Models.
• Will work with Bilstein (yellow) factory front struts on 2014-2015 models.
• RWD models may require driveline modification.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.

Recommended Tires & Wheels
(Trimming may be required)

• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
• 35 x 12.5 with 22 x 9 and 6.25 in. Backspace

Shock Option

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Zone Offroad Features:

• High strength crossmembers to correct lower control arm positioning.
• Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility.
• Lower strut extensions to provide lift and install easily.
• Weld-in chassis plates add strength and rigidity.
• Rear lift blocks and u-bolts to lift and level the stance.
• Sway bar, brake line, and bump stop relocation brackets to correct operating angles
• For more information on Zone Offroad call us at 1-859-737-4966
