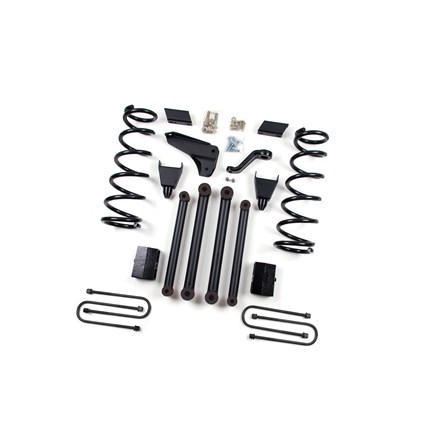

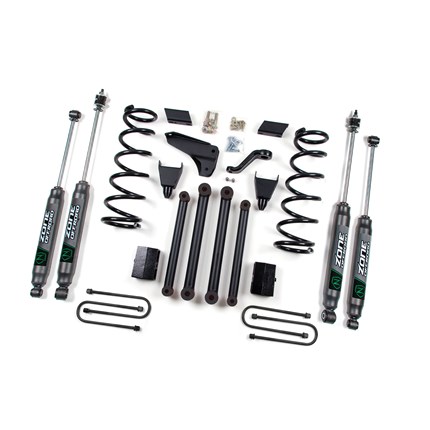

Zone Offroad 5" Coil Spring Lift Kit - 10-13 Dodge/Ram 2500/3500 4WD

Product Name: Zone Offroad 5” Coil Spring Lift Kit - 10-13 Dodge/Ram 2500/3500 4WD
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZOND161013DG
Fitment Notes: 2010-2013 Dodge/Ram 2500/3500 4WD

Go big and go anywhere with this 5" Lift Kit for your truck that gives you clearance for huge tires up to 36". This kit has everything you need to raise and level your 4WD 2010 - 2013 Dodge / Ram 2500 / 3500 Truck. If you're going to do it, do it right.

Important Notes

• Will work with Power Wagon models with the addition of sway bar link kit D5301.
• Power Wagon models came factory with a 2" taller ride height, so net lift gain will be 3" over stock.
• This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
• Factory wheels fit when paired with factory / original equipment tire size.
• This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
• Gas Engine? Gas models may sit slightly taller than the advertised lift height due to lighter weight of engine.
• These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
• This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.

Recommended Tires & Wheels
(Trimming may be required)

• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

Zone Offroad Features:

• 100% bolt-on design for easy installation.
• Bump stop extensions properly limit up-travel, protecting your vehicle.
• Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
• Heavy-duty front track bar bracket correctly positions front axle under vehicle.
• Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
• For more information on Zone Offroad call us at 1-859-737-4966
