Zone Offroad 5.5" Suspension Lift Kit - 15-22 Chevy/GMC Colorado/Canyon

Product Name: Zone Offroad 5.5” Suspension Lift Kit - 15-22 Chevy/GMC Colorado/Canyon
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONC391522GM
Fitment Notes: 2015-2022 Chevy/GMC Colorado/Canyon

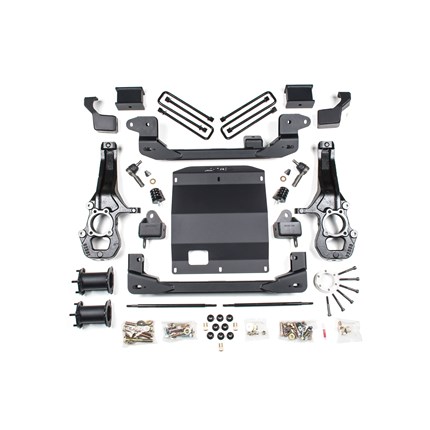

To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

Important Notes

• Factory wheels cannot be reinstalled.
• Fits Gas and Diesel models. Inner fender trimming may be required.
• The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel maybe experienced.
• Will not fit ZR2 Models.

Recommended Tires & Wheels
(Trimming may be required)

• 305 / 55 with 20 x 9 and 5.25 in. Backspace
• 295 / 65 with 18 x 9 and 4.5 in. Backspace
• 295 / 65 with 17 x 8.5 and 4.5 in. Backspace

Zone Offroad Features:

• Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
• High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Rear lift block and longer u-bolts for easy installation and level stance.
• For more information on Zone Offroad call us at 1-859-737-4966
