Zone Offroad 5.5" Standard Lift Kit - 13-18 RAM 3500 4WD (Gas)

Product Name: Zone Offroad 5.5” Standard Lift Kit - 13-18 RAM 3500 4WD (Gas)
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZOND661318DG
Fitment Notes: 2013-2018 RAM 3500 4WD (Gas)

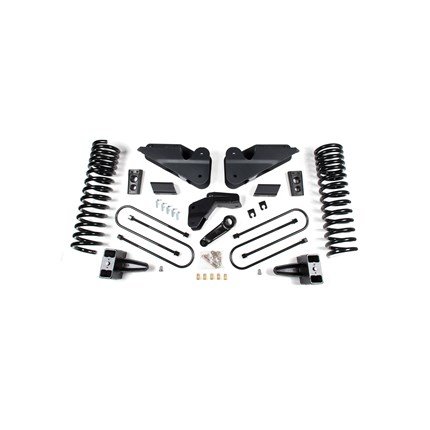

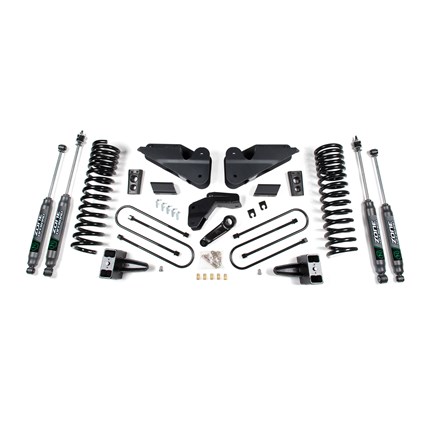

Take your RAM 3500 to new heights with this 5.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Important Notes

• Fits trucks equipped with the 6.4L gas engines.
• Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
• Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
• Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft. 5.7L Gas models may require modification

Recommended Tires & Wheels
(Trimming may be required)

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 17 x 9 and 5.75 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.75 in. Backspace

Zone Offroad Features:

• Progressive rate front coil springs improve ride quality and off-road performance.
• Radius arm drop brackets to correct caster and improve suspension geometry.
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles.
• Replacement rear lift blocks and u-bolts to lift and level the stance
• For more information on Zone Offroad call us at 1-859-737-4966
