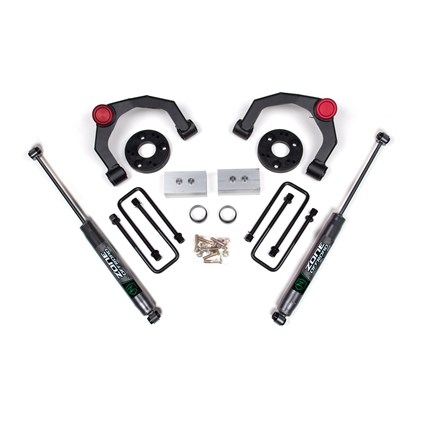

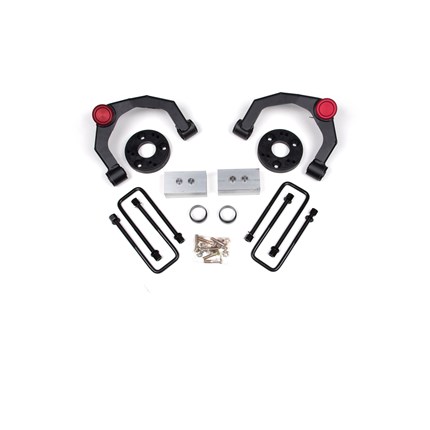

Zone Offroad 3" Adventure Series Lift Kit - 15-20 Ford F150

Product Name: Zone Offroad 3" Adventure Series Lift Kit - 15-20 Ford F150
Manufacturer: Zone Offroad
Thoroughbred Diesel Part #: ZONF661520FD
Fitment Notes: 2015-2020 Ford F150

Looking to get more out of your 2015-2020 Ford F150 without going all in on a full 4" or 6" suspension system? These 3" Adventure Series lift kits are designed to be more than a leveling kit and work with the factory suspension mounting points to improve ground clearance, allow room for larger tires and improve your truck's capability.

Important Notes

• Preload ring may not work with aftermarket struts, designed to be used with OEM struts Strut compessor required for installation.
• Will fit EcoBoost models.
• Will fit on diesel models, but may result in a lower ride height.
• Will not fit Raptor models
• Maximum 5.5" BS wheels recommended (due to wheel/tire clearance to the UCAs)
• This kit will not work on trucks with stock ride height over 22in. (FX4, Snow Prep, and other off-road packages may have a stock ride height over 22in)

Recommended Tires & Wheels
(Trimming may be required)

• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Shock Option

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

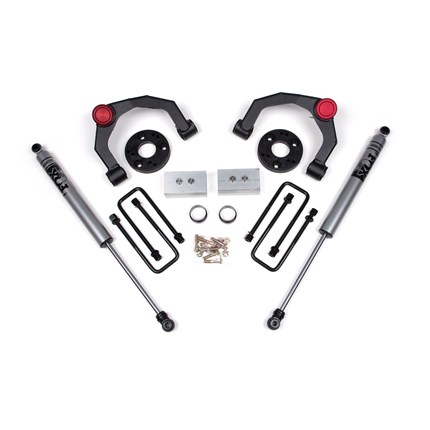

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Zone Offroad Features:

• High strength UCAs are boxed and fully welded, specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
• Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle, retain factory ride quality without over extending suspension/drivelines at full suspension droop.
• Maintains ride and handling characteristics with clearance for larger tires 2" replacement rear lift blocks and heavy duty u-bolts to level the stance.
• Optional Nitro series gas or FOX 2.0 Adventure series gas rear shocks to improve performance "
