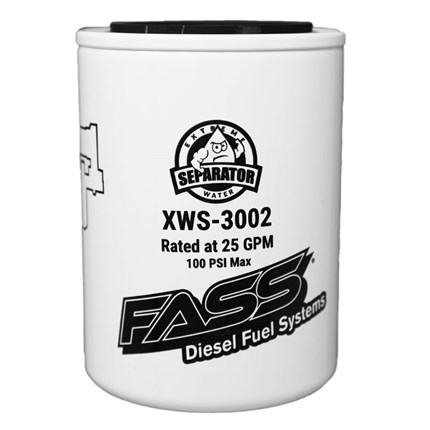

FASS Hydroglass (Extreme Water Separator) - XWS-3002

Product Name: FASS Hydroglass (Extreme Water Separator)
Manufacturer: FASS
Manufacture Part #: XWS3002
Thoroughbred Diesel Part #: FASXWS3002
Fitment Notes: For use with: Drop-In Series, FASS Titanium Series or FASS Titanium Signature Series Systems

Supersedes Part No: XWS-3002

FASS New more efficient Extreme Water Separator is rated @ 2 microns absolute. Our water separator no longer has a drain because the filter element traps the water.

The new XWS3002 MUST be used in conjunction with the PF3001, the new filters cannot be used in combination with the FF-3003/FF-3010 or FS-1001/FS-1020.

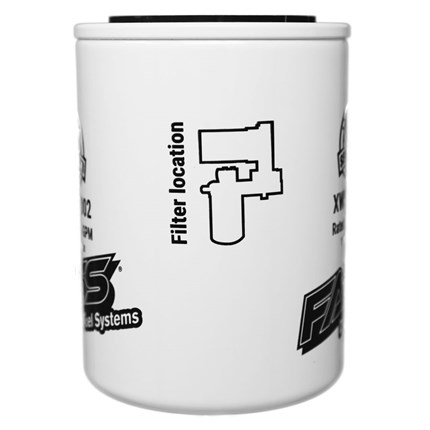

When replacing the discontinued filters with the new XWS3002 and PF3001, the XWS3002 will now be placed on the pressure side of the System and the PF3001 will be placed on the suction side. PLEASE SEE THE LOCATION DIAGRAM ON THE NEW FILTERS FOR PROPER FILTER PLACEMENT!

For use with: Drop-In Series, FASS Titanium Series or FASS Titanium Signature Series Systems

FASS Filter Features:

• Part No: XWS3002 (supersedes XWS-3002)
• Rated at 2 microns absolute for superior water and particulate removal
• No drain required—water is trapped within the filter element
• Must be used with PF3001; not compatible with FF-3003/FF-3010 or FS-1001/FS-1020 filters
• For use with FASS Drop-In, Titanium, and Titanium Signature Series Systems
• New configuration: XWS3002 installs on the pressure side, PF3001 on the suction side
• Designed for long service life and consistent filtration performance
• For more information on FASS call us at 1-859-737-4966
