Wilwood TX6R Tactical Xtreme Front Big Brake Kit With Brake Lines - 11-19 GM 2500 (Black Calipers)

Product Name: Wilwood TX6R Tactical Xtreme Front Big Brake Kit With Brake Lines - 11-19 GM 2500 (Black Calipers)
Manufacturer: Wilwood
Manufacturer Part #: 140-13873
Thoroughbred Diesel Part #: WIL140-13873
Fitment Notes: 2011-2019 GM 2500

TX6R Big Brake Truck Front Brake Kit

Wilwood's Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00� to 16.00� GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

Wilwood Brake Kit Features:

• Ultimate Braking Performance: Designed for trucks, SUVs, and armored vehicles.
• TX6R Calipers: Radial mount six-piston calipers for superior clamping force.
• Massive Rotors: Includes 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors.
• High Heat Durability: Ensures consistent stopping power and extreme duty durability under sustained high heat.

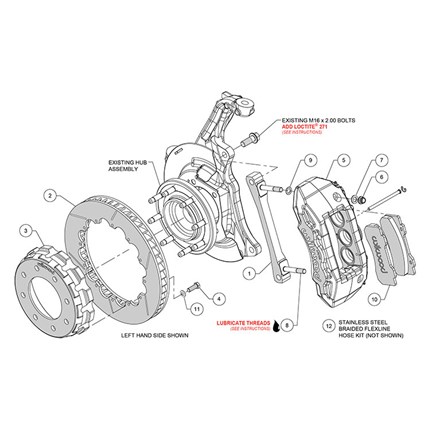

• Bolt-On Kit: Ready to install with radial mount caliper brackets and all necessary hardware.
• OE Compatibility: Volume matched for compatibility with original equipment power brake system output.
• Installation Hardware Included: Comes with all necessary hardware for installation.
• Additional Flex Lines Needed: Braided stainless steel flex lines may need to be purchased for some applications.
• For more information on Wilwood call us at 1-859-737-4966.

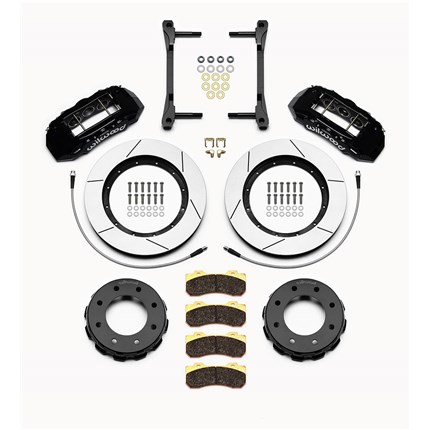

Kit Components & Specifications :

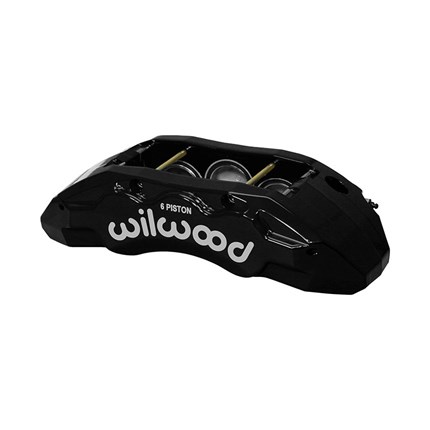

• Calipers
• Left Hand - Part No: 120-13814-BK
• Right Hand - Part No: 120-13813-BK
• Type: TX6R
• Finish Color: Black Powder Coat
• Piston Count: 6
• Piston 1 Bore (in): 2.00
• Piston 2 Bore (in): 1.88
• Piston 3 Bore (in): 1.88
• Piston Area (In²): 8.70
• Piston Type: Stainless
• Mount Type: Radial
• Brake Pad Plate: 10120
• Brake Pad Area (In²): 12.69
• Brake Pad Volume (In³): 6.81
• Pad Compound: BP-Q

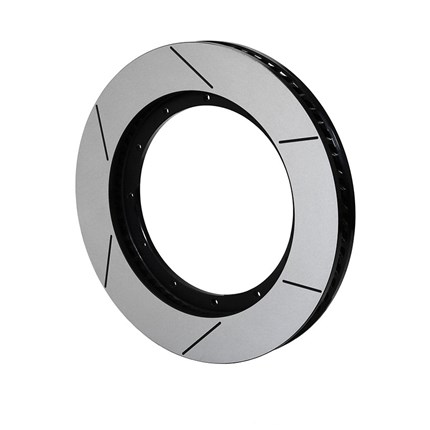

• Rotors
• Left Hand - Part No: 160-13786-GTB
• Right Hand - Part No: 160-13785-GTB
• Type: GT 60 Curved Vane
• Style: GT Slotted
• Surface Finish: Black Electro Coat
• Material: Spec-37 Iron
• Outside Diameter (in): 15.00
• Width (in): 1.50
• Vane Count: 60 CV
• Design Type: GT-BLK
• Bedded: No
• Dynamically Balanced: Yes

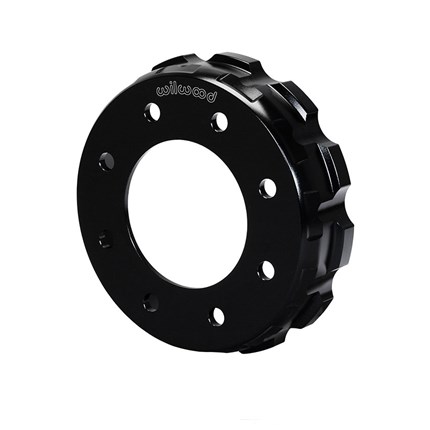

• Rotor Hats
• Hat - Part No: 170-13871
• Type: Truck Hat - Standard
• Material: Aluminum
• Finish Color: Black E-Coat
• Hat Offset Dimension (in): 1.920
• Bolt Circle 1: 8 x 7.09
• Bolt Circle 2:
• Bolt Circle 3:
• Stud Diameter - BC 1: 0.640
• Stud Diameter - BC 2: 0.000
• Stud Diameter - BC 3: 0.000
