Wilwood TC6R Big Brake Rear Brake Kit - 01-10 GM 2500/3500; 03-05 GM 1500 (Red Calipers | Slotted Rotors)

Product Name: Wilwood TC6R Big Brake Rear Brake Kit - 01-10 GM 2500/3500; 03-05 GM 1500 (Red Calipers | Slotted Rotors)
Manufacturer: Wilwood
Manufacturer Part #: 140-9406-R
Thoroughbred Diesel Part #: WIL140-9406-R
Fitment Notes: 2001-2010 GM 2500/3500 | 2003-2005 GM 1500

TC6R Big Brake Truck Rear Brake Kit

TC6R rear axle disc brake kits with 16" rotors are the ultimate big brake solution for highly customized and modified trucks or SUV's with 20" and larger wheels. TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.

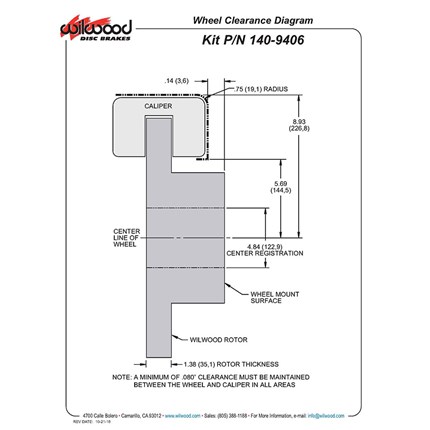

Notes: Fits axle with 4.84 center register only.

Note: Brake lines needed 220-9811, or 220-11196

Wilwood Brake Kit Features:

• Ultimate Big Brake Solution: Designed for highly customized and modified trucks or SUVs with 20” and larger wheels.
• Rear Axle Disc Brake Kits: Features 16” rotors, providing substantial braking power.
• Factory Replacement: Replaces factory disc brakes while using the OE parking brake assembly.
• Complement to Front Upgrades: Works in conjunction with front big brake upgrades.
• Components: Includes TC6R calipers, BP-10 compound pads, and oversized rotors.
• Compatibility: Matched to OE master cylinder output, ABS function, and vehicle bias requirements.
• Enhanced Control: Provides necessary control for big wheels and tires, ensuring safe stopping on heavy vehicles.
• For more information on Wilwood call us at 1-859-737-4966.

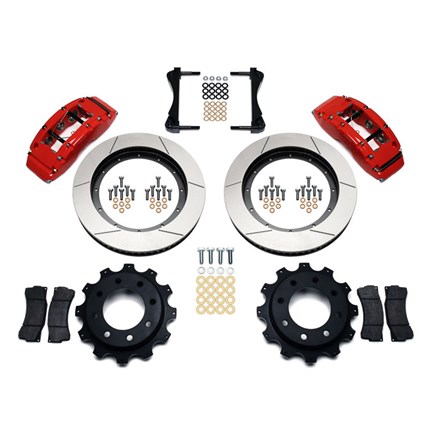

Kit Components & Specifications :

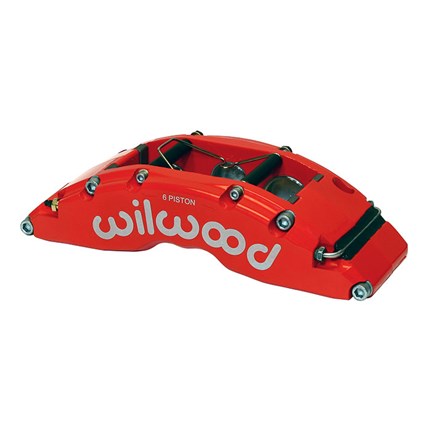

• Calipers
• Left Hand - Part No: 120-14318-FSR
• Right Hand - Part No: 120-14317-FSR
• Type: TC6
• Finish Color: Red Powder Coat
• Piston Count: 6
• Piston 1 Bore (in): 1.75
• Piston 2 Bore (in): 1.38
• Piston 3 Bore (in): 1.38
• Piston Area (In²): 5.40
• Piston Type: Stainless
• Mount Type: Radial
• Brake Pad Plate: 6318
• Brake Pad Area (In²): 13
• Brake Pad Volume (In³): 6
• Pad Compound: BP-10

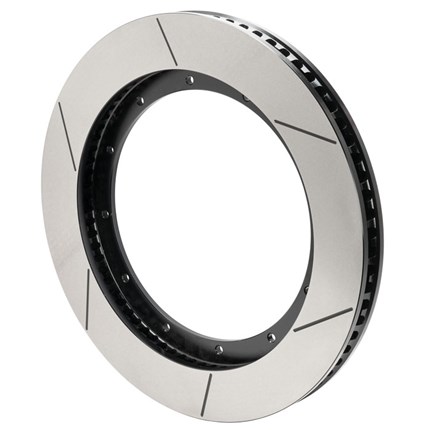

• Rotors
• Left Hand - Part No: 160-16994-GTB
• Right Hand - Part No: 160-16994-GTB
• Type: GT 72 Staggered Vane
• Style: GT Slotted
• Surface Finish: Black Electro Coat
• Material: Iron
• Outside Diameter (in): 16.00
• Width (in): 1.38
• Vane Count: 72 SV
• Design Type: GT-BLK Bedded: No
• Dynamically Balanced: Yes
• Rotor Hats
• Hat - Part No: 170-14029
• Type: Parking Brake Hat - Truck
• Material: Iron
• Finish Color: Black E-Coat
• Hat Offset Dimension (in): 1.910
• Bolt Circle 1: 8 x 6.50
• Stud Diameter - BC 1: 0.640
• Stud Diameter - BC 2: 0.000
• Stud Diameter - BC 3: 0.000
