WC Fab Traction Bar Kit, 60 in., 11-19 Chevy & GMC Duramax RCLB/CCSB/ECSB

Product Name: WC Fab Traction Bar Kit, 60 in., 2011-2019 Chevy & GMC Duramax RCLB/CCSB/ECSB
Manufacturer: WC Fab
Thoroughbred Diesel Part #: WCF100851
Fitment Notes: 2011-2019 Chevy & GMC Duramax RCLB/CCSB/ECSB

***This kit includes 60" long bars for Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models***
***This kit is for 2011-2019 GM HD Trucks***
If you have Extended Cab Long Bed or Crew Cab Long Bed truck use part number WCF100853
If you have a Lift Kit and your U-Bolts face up instead of down like factory, use Traction Bar Kit WCF100855
If you have a Lift Kit and your REAR lift Block is taller than 5" use part number WCF100853

Built in house at WCFab carrying a LIFETIME WARRANTY against bending or breaking (to original purchaser). Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets bolt on to the bottom of the axle tube via the axle u-bolts and weld to the frame on the front end. We use a high quality Currie Enterprise rebuild-able and grease-able “Johnny Joint” heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy Duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends. Grade 8 hardware connects the bars to the mounts on the frame and axle. We complete our traction bar kit with our professional in house powder coat process in your color choice and comes standard with a ZINC Primer base coat before the final color which increases corrosion resistance by more than ten times compared to just your standard powder single coat application.

Note (Current WC Fab Lead Times):

• In Stock Items: 7-10 Business Days
• Most Built to Order Powder Coated Items: 10-15 Business Days
• Traction Bars: 10-15 Business Days

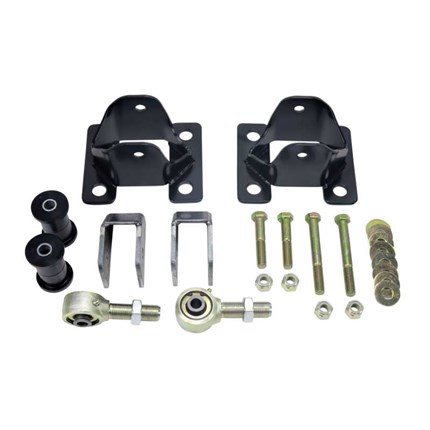

WC Fab Traction Bar Kits Features:

• ***For Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models***
• LIFETIME WARRANTY against bending or breaking (to original purchaser)
• 60" Heavy Duty Bars
• Poly Bushings
• Curry Enterprise Johnny Joints
• Frame side weld on mounts
• Axle side bolt on mounts
• Grade 8 Hardware
• Powder Coating with zinc primer base coat
