WC Fab High Flow Bundle Kit Stage 1, 2007.5-2010 Duramax LMM, Bengal Red

Thoroughbred Sku #: WCF100324-BR

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


Kit/package individual items: qty. 1 WCF100164-BR, qty. 1 WCF100367-BR, qty. 1 WCF100352-BR


View All applications


Product Details

Product Name:WC Fab High Flow Bundle Kit Stage 1, 2007.5-2010 Duramax LMM, Bengal Red
Manufacturer: WC Fab
Manufacturer Part #: WCF100324-BR
Thoroughbred Diesel Part #: WCF100324-BR
Fitment Notes: 2007.5-2010 GM Duramax LMM

Stage 1 upgrade for the 2007.5-2010 LMM Duramax improves airflow between the turbo and engine for improved efficiency, throttle response, and turbo spool-up. Eliminates weak points in the factory design that can lead to boost leaks or complete failures in hard-working and high performance applications.

The 3" Y-Bridge Kit is an upgraded high flow intake kit for the 2006-2007 LBZ Duramax which replaces the OEM upper intake manifold supplying air to the engine intake runners. The OEM Y-bridge for these trucks is a poorly designed, slip-fit style two piece bridge with very little support and is prone to blowing apart under boost on hard working and high performance trucks creating poor drivability, reduced fuel economy, and decreased power. This kit is a much improved, high flow, bolt together style two piece 3" bridge which provides a secure sealing surface where the air inlet horn connects to the bridge. 3" high flow upper and lower intercooler pipes feature smooth flowing mandrel bends, CNC machined billet flanges and perfectly compliment the y-bridge to offer a full 3" tract from intercooler pipe slip connection to the engine incorporating the factory grid heater and EGR connection controls.

The Driver (Hot) Side 3" Intercooler Pipe replaces the 2 1/2" OEM piece with a full 3" pipe. The stock part uses a reverse style bead roll design at the turbo which is prone to blowing off of the turbo under higher boost levels than stock.

The 3.5" High Flow Passenger (Cold) Side Intercooler Pipe replaces the aging and failure prone factory plastic piece with a larger and more durable, high flow, 14 ga. aluminum fabricated 3.5" components. This part uses CNC machined flanges with double o-ring seals, comes supplied with new wire clip rings for both slip flanges, and uses an upgraded silicone hump boot with stainless steel t-bolt clamps to withstand higher boost pressures than stock to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks.

Finished in your choice of custom powder colors. Pairs best with emissions compliant tuning and drop in turbochargers for optimum performance gains.

Note (Current WC Fab Lead Times):

  • In Stock Items: 3-5 Business Days
  • Most Built to Order Powder Coated Items: 10-15 Business Days
  • Traction Bars: 10-15 Business Days

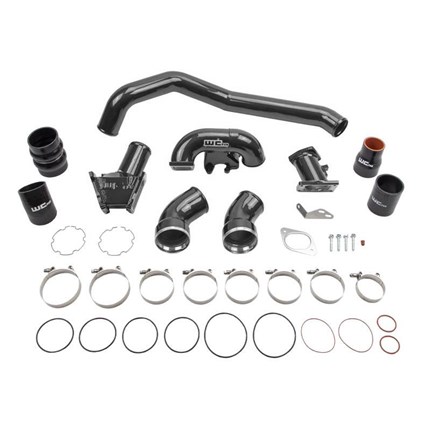

WC Fab High Flow Bundle Kit Stage 1 Features:

  • WCFab's Signature 3" Two Piece Y-Bridge, with Upper Crossover and Lower Intercooler Pipes (Flows 36% Better Than Stock!)
  • 3" Hot (Driver) Side Intercooler Pipe with high temperature wire-reinforced boot
  • 3.5” Cold (Passenger) Side Intercooler Pipe (Flows 47% Better Than Stock!)
  • High Quality Silicone Boots & Stainless Steel T-Bolt Clamps
  • Map Sensor Seal
  • High Temp O-Ring Seals for Grid Heater and EGR
  • Y-Bridge O-Ring Flange Seals
  • New Up Pipe to EGR Gasket
  • New Grid Heater Install Hardware
  • New Throttle Valve Support Bracket
  • No Tuning Required, Bolt On!
  • Compatible with stock trucks. No other modifications or upgrades necessary!
  • Custom Powder Coat Finish
  • Made in USA
  • Saves Up to $99 vs. buying included parts individually
  • For more information on WC Fab call us at 1-859-737-4966.


  • Is their any difference in sound with the high flo kit?

    Wyatt Walden | 3/23/2023

    Biggest difference will be in airflow. The sound may change some.
