WC Fab High Flow Y-Bridge Kit With Intake Horn - 20-26 Ford Power Stroke 6.7L, Brizzle Blue

Product Name: WC Fab High Flow Y-Bridge Kit With Intake Horn - 20-26 Ford Power Stroke 6.7L, Brizzle Blue
Manufacturer: WC Fab
Manufacturer Part #: WCF100139-BRZ
Thoroughbred Diesel Part #: WCF100139-BRZ
Fitment Notes: 2020-2026 Ford Power Stroke 6.7L

Take the performance of your 2020-2026 Ford 6.7L Power Stroke to the next level with the WCFab High Flow Upper Intake Manifold & Turbo Inlet Kit. Engineered to be the largest, least restrictive, and highest-flowing intake manifold available for the platform, this complete system is designed to maximize airflow, improve efficiency, and support everything from stock trucks to high-horsepower builds.

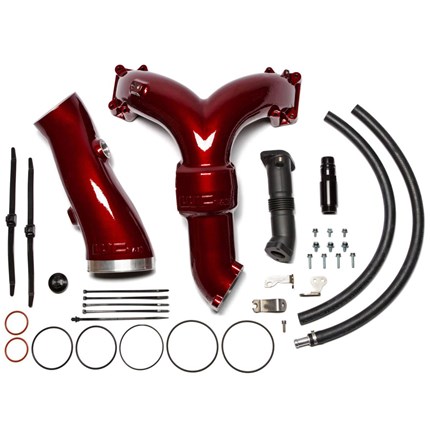

Featuring a massive 3.5-inch Y-Bridge intake manifold paired with our high-flow turbo inlet horn, this bolt-on upgrade delivers a 146% increase in airflow over the factory intake manifold system while remaining emissions compatible and requiring no tuning for installation.

Unlike designs that simply deadhead exhaust gas into the intake stream, the WCFab intake manifold features an optimized EGR introduction and mixing cavity - eliminating a major flow path obstruction in the OEM design. This promotes more thorough mixing of EGR gases with incoming air, helping reduce soot accumulation inside the intake manifold while dramatically increasing airflow vs. OEM and maintains a more consistent airflow over the lifetime of the truck.

The result is improved throttle response, quicker turbo spool-up, lower exhaust gas temperatures (EGTs), and increased overall engine efficiency. When paired with custom performance tuning and upgraded turbochargers, this system provides the airflow needed to support significantly higher horsepower levels.

The included heat-treated cast aluminum turbo inlet horn is designed for maximum airflow while maintaining compatibility with both factory and aftermarket air intake systems and OEM style drop-in turbocharger upgrades. It retains the OEM-style widemouth oval inlet for a seamless installation.

The inlet horn utilizes a dual O-ring slip-fit connection at the turbo compressor cover, providing a simple, leak-free installation. The design also retains the factory CCV hose routing and function through a precision CNC machined billet aluminum, black anodized CCV fitting with a #10 ORB thread connection.

To further improve performance and sound, the factory turbo resonator is eliminated, allowing for increased turbo whistle and a more aggressive engine tone.

Note (Current WC Fab Lead Times):

• In Stock Items: 3-5 Business Days
• Most Built to Order Powder Coasted Items: 10-15 Business Days
• Traction Bars: 10-15 Business Days

WC Fab High Flow Y-Bridge Kit With Intake Horn Features:

• Largest, least restrictive, highest-flowing upper intake manifold available for the 2020-2026 Ford 6.7L Power Stroke
• Complete 3.5-inch Y-Bridge intake manifold with high-flow turbo inlet horn
• 146% greater airflow than the factory intake manifold system
• Emissions-compatible bolt-on upgrade with no tuning required
• Upgraded, Ceramic Coated EGR pipe and optimized EGR mixing cavity reduce soot buildup and optimize intake airflow path
• Improved throttle response and faster turbo spool-up
• Lower EGTs and increased engine efficiency
• Supports higher horsepower gains when paired with performance tuning and upgraded turbochargers
• Heat-treated cast aluminum turbo inlet horn
• Leak-free dual o-ring turbo connection
• Retains proper factory CCV function with black anodized billet aluminum fitting
• Eliminates ugly plastic factory intake resonator box for improved turbo sound
• Compatible with OEM and aftermarket air intake systems as well as OEM style drop-in turbo upgrades
• Custom Powder Coat Finish
• Made in USA!
