WC Fab High Flow 3.5 in. Y-Bridge (Bridge Assembly Only) Gloss Black - 2017-2023 GM 6.6L Duramax

Thoroughbred Sku #: WCF100283-GB

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$780.85

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
wc-fab-logo

View More Products From

WC Fab

Product Details

Product Name: WC Fab High Flow 3.5 in. Y-Bridge (Bridge Assembly Only) Gloss Black 2017-2023 GM 6.6L Duramax
Manufacturer: WC FAB
Manufacturer Part #: WCF100283-GB
Thoroughbred Diesel Part #: WCF100283-GB
Fitment Notes: 2017-2023 GM 6.6L Duramax

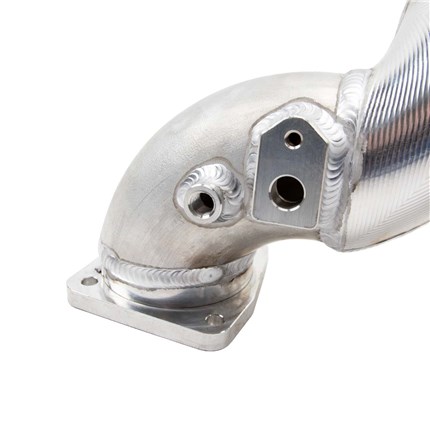

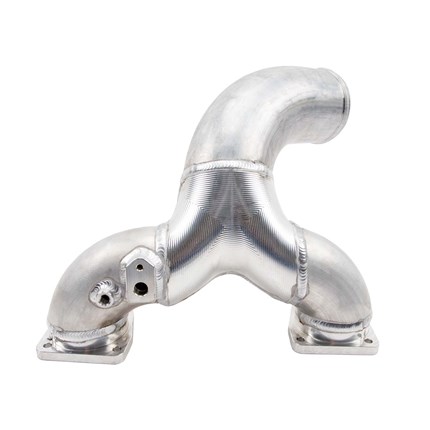

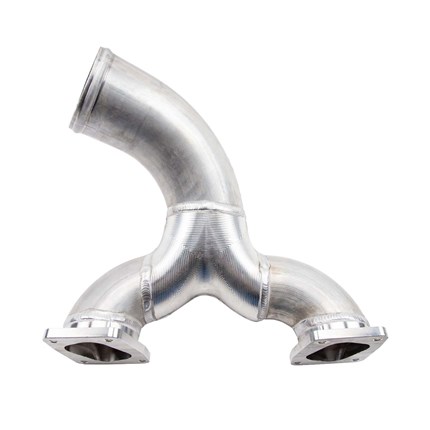

BRIDGE ASSEMBLY ONLY - The factory LBZ/LMM Y-bridge is a poorly designed slip-in style two piece bridge with very little support that is prone to blowing apart under boost and creating poor drivability and performance. This kit is a much improved, bolt together style two piece 3" High Flow Y-Bridge designed to address the factory weak points for custom build performance and racing applications. Bolts to OEM intake runners. 3" Bead Roll Connection at inlet. Easy to install two piece bolt together design replaces separation / boost leak prone OEM part. Raw finish ready for polishing and painting standard. Custom Color Powder Coat finishes (as shown) are available as an optional upgrade and carry additional lead time. Designed for use with aftermarket and custom fabricated high flow piping and turbo kits running higher boost pressures. Not compatible with OEM piping, requires additional fabrication work / customization for integration with turbocharger intercooler system. NOTE: Raw finish selection will require some type of finish / sealant to prevent oxidation and corrosion.

Features:

  • 3" High Flow Y-Bridge - BRIDGE ASSEMBLY ONLY, does not include upper cross-over or passenger side intercooler pipe. Direct Replacement for Y-Bridge used in WCF100163 and WCF100164.
  • Bolts to OEM intake runners
  • Two piece bolt together design for simple installation
  • Reduces risk of bridge separating under extreme boost applications
  • Includes O Ring Seals for Bridge Inlet and Intake Runners
  • Optional Custom Color Powder Coat Finishes Available for Additional Charge
  • Durable Custom Powder Coat Finish
  • Made in USA

12 Months Warranty - https://www.wcfab.com/ft-3087-wcfab-limited-product-warranty.html

Note (Current WC Fab Lead Times):

  • In Stock Items: 7-10 Business Days

  • Most Built to Order Powder Coated Items: 10-15 Business Days

  • Traction Bars: 10-15 Business Days
