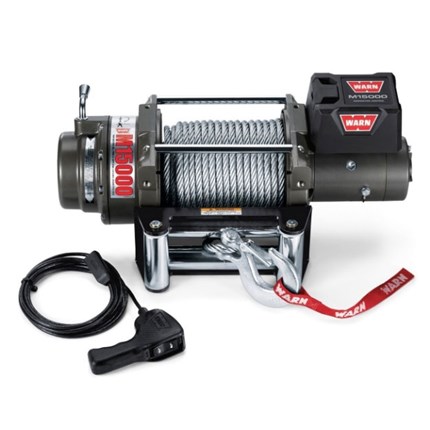

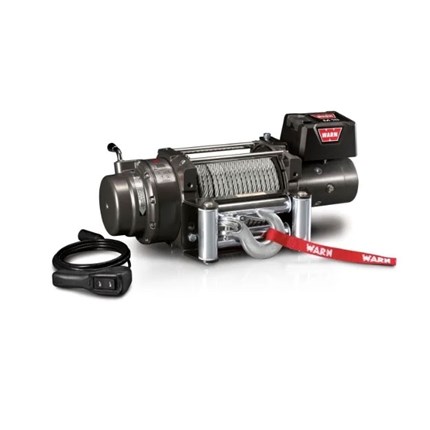

Warn M15 Winch With Steel Cable

Thoroughbred Sku #: WAR47801
Manufacturer Sku #: 47801

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$2,677.49

free-shipping-no-handling

Product Details

Product Name: Warn M15 Winch With Steel Cable
Manufacturer: Warn
Manufacturer Part #: 47801
Thoroughbred Diesel Part #: WAR47801

The M15000 Series 12 volt electric winch is vehicle mounted and has a pull capacity of 15,000 pound. It has a 90' of 7/16" wire rope.

Please Note: This Winch will require winch mount for proper installation.

Got a full-size truck? The M15 offers 15,000 lbs. of pulling capacity for heavy-duty jobs. The large-frame architecture means this winch will stand up to the stresses of heavy winching. Plus, its removable control pack allows for clearance and ease of access.

Warn Features:

  • High strength carrier plates designed to handle heavy gear train stresses
  • Best-in-class cone brake holds full-rated load of winch
  • Chip-resistant powder-coated finish resists corrosion
  • Remote-mount control box allows for various mounting options
  • Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
  • Available with lightweight, easy-to-handle Spydura Pro synthetic rope and Epic Hook or durable steel rope and standard hook
  • For more information on Warn call us at 1-859-737-4966

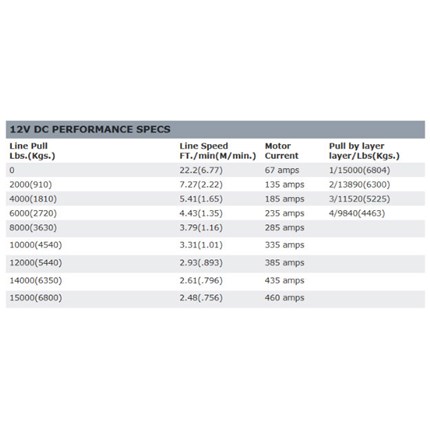

Specifications:

Rated Line Pull 15,000 lbs. (6804 kg) single-line
Motor Series wound, Series wound
Electrical controls Contactor
Remote Control Remote switch, 12’ (3.7m) lead
Geartrain 3-stage planetary
Gear ratio 315:1
Clutch (freespooling) Rotating ring gear
Brake Automatic mechanical cone

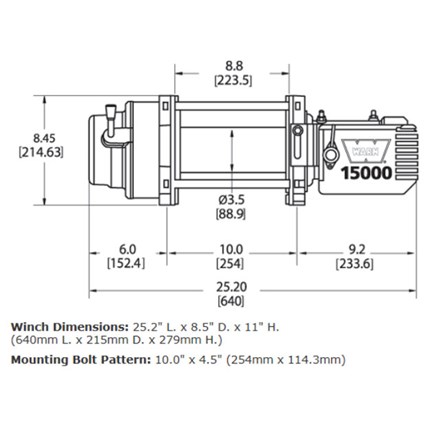

Drum diameter/Length 3.5’’/8.2’’ (9cm/21cm)
Fairlead M15: Roller
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Finish Argent gray powder coat
Weight M15: 135 lbs. (61 kg)
Warranty Limited lifetime (mechanical components); seven year (electrical components)
