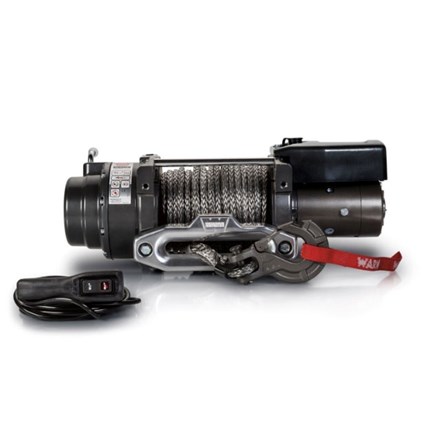

warn-97740-1-1
warn-logo

Warn 16.5TI-S Heavyweight Winch

Thoroughbred Sku #: WAR97740
Manufacturer Sku #: 97740

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$3,141.59

free-shipping-no-handling

Product Details

Product Name: Warn 16.5TI-S Heavyweight Winch
Manufacturer: Warn
Manufacturer Part #: 97740
Thoroughbred Diesel Part #: WAR97740

This Warn Industries 16.5ti-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pound. It has a 80 feet Spydura Pro rope. Note: This Winch will require winch mount for proper installation.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle..

Please Note, the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.

Warn Features:

  • 16,500 lb. capacity
  • Includes 80' of 3/8" Spydura Pro synthetic rope
  • Includes 18,000 lb capacity EPIC hook
  • Thermometric indicator LED provides operator feedback
  • Large-frame winch architecture mounts feet forward
  • Contactor control for the ultimate in reliable electronics
  • Powerful, efficient series-wound motor
  • Durable, smooth three-stage planetary gear train
  • Best-in-class cone brake
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
  • For more information on Warn call us at 1-859-737-4966

Specifications:

Rated Line Pull 16,500 Lbs. (7484 kg) single-line
Motor 12V DC, series wound
Electrical controls Contactor
Remote Control Remote switch, with LED indicator 12’ (3.7m) lead
Geartrain 3-stage planetary
Gear ratio 315:1
Clutch (freespooling) Rotating ring gear
Brake Automatic mechanical cone
Drum diameter/Length 3.5’’/8.2’’ (9cm/21cm)
Rope 16.5ti-s: 3/8’’ x 80’ (9.5mm x 24.3m) Spydura Pro synthetic
Fairlead 16.5ti-s: Aluminum hawse
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Finish Argent gray powder coat
Weight 16.5ti-s: 104 lbs. (47 kg)
Warranty Limited lifetime (mechanical components); seven year (electrical components)
