Viair Ultra-Light Duty Onboard Air System (12V, 130 Psi Compressor, 1.0 Gal. Tank)

Product Name: Viair Ultra-Light Duty Onboard Air System (12V, 130 Psi Compressor, 1.0 Gal. Tank)
Manufacturer: Viair
Manufacturer Part #: 10000
Thoroughbred Diesel Part #: VIA10000

The Ultra-Light Duty OBA is ideal for light duty pneumatic tasks such as air horns, air lockers and more. While not intended for tire inflation, this system provides a reliable and cost effective air source package.

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Viair Features:

• 1.0 Gallon VIAIR Air Tank
• 98C VIAIR Air Compressor

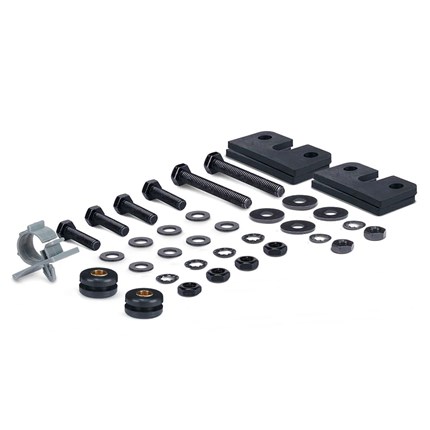

• Omega Bracket with Mounting Hardware
• Pressure Switch (85 PSI on, 105 PSI off)
• 40-Amp Relay
• 145 PSI Safety Valve
• T-Fitting: 1/4” (M) x 1/4? (F) x 1/8” (F)
• T-Fitting: 1/4” (M) x 1/4? (F) x 1/4” (F)
• 1/4” Drain Cock
• 1/4” Compression Fitting
• 1/4” Plug (M)
• (2) 1/4” (M) NPT to 1/8” (F) BSP

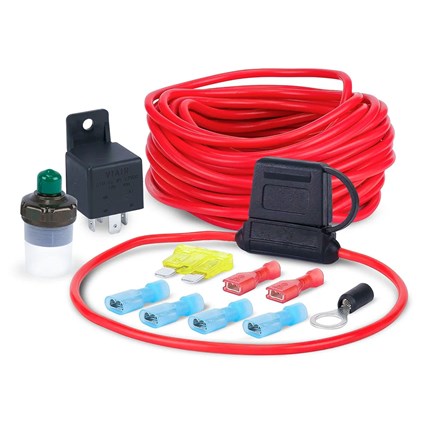

• 20ft. 16 Gauge Wire with Inline Fuse Holder
• Accessory Airline
• Electrical Connections
• For more information on Viair call us at 1-859-737-4966.

SPECS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 10% @ 100 PSI
• Max. Working Pressure: 105 PSI
• Max. Amp Draw: 13-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

FILL RATES
