Viair 485C Stealth Black Gen 2 Onboard Air System (12V, 200 Psi Compressor, 2.5 Gal Tank)

Thoroughbred Sku #: VIA20002
Manufacturer Sku #: 20002

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$760.59

free-shipping-no-handling
Universal

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
viair_logo

View More Products From

Viair

Product Details

Product Name: Viair 485C Stealth Black Gen 2 Onboard Air System (12V, 200 Psi Compressor, 2.5 Gal Tank)
Manufacturer: Viair
Manufacturer Part #: 20002
Thoroughbred Diesel Part #: VIA20002

VIAIR's Continuous Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 485C CE compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Viair Features:

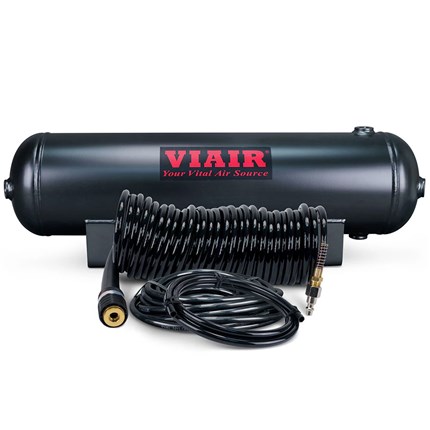

  • 2.5 Gallon VIAIR Air Tank (200 PSI)

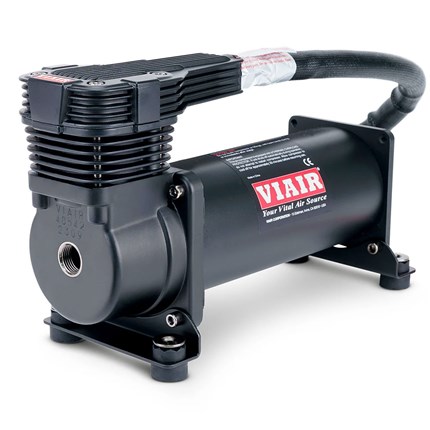

  • 485C Stealth Black VIAIR Compressor w/ Thermal Overload Protector

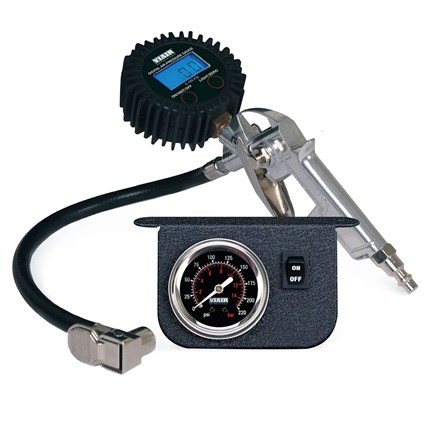

  • Digital Tire Inflation Gun with 180 PSI Gauge
  • 30ft. Inside Braided Black Coil Hose with Quick Connects
  • 1/4” NPT Quick Connect Stud (F)
  • 1/4” NPT Quick Connect Coupler (F)
  • Dash Panel Gauge with ON/OFF Switch
  • Sealed Pressure Switch
    (165 PSI on, 200 PSI off)

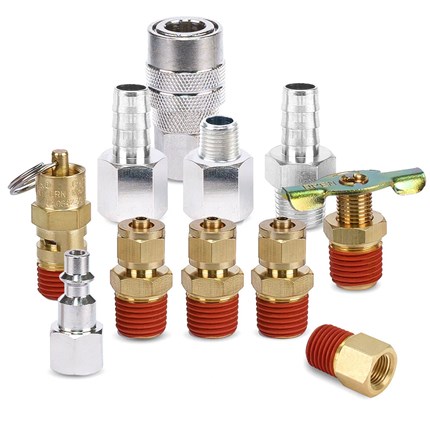

  • Reducer 1/8” NPT (F) to 1/4” NPT (M)
  • Reducer 3/8” NPT (F) to 1/4” NPT (M)
  • 1/4” NPT 250 PSI Safety Valve
  • 1/4” NPT Drain Cock
  • (3) 1/4” NPT Compression Fittings
  • 4” Strip of Grommet Material

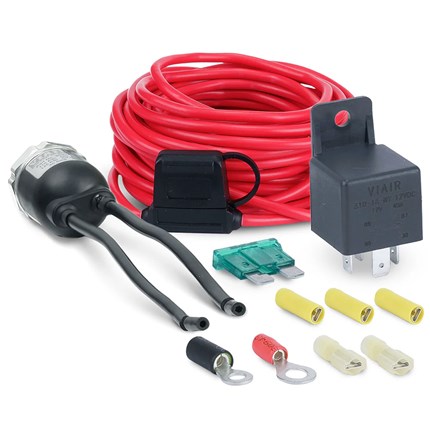

  • 20ft. 12-Gauge Wire with Inline Fuse Holder
  • Electrical Connections
  • Accessory Airline
  • For more information on Viair call us at 1-859-737-4966.

SPECS

  • CFM: 2.24 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.63?L x 4.1?W x 6.44?H
  • Net Weight: 11.10 lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.24 12 0 70.0 12
10 1.84 14 1.0 51.0 15
20 1.75 16 2.0 47.0 16
30 1.67 17 3.0 44.0 18
40 1.61 18 4.0 41.0 20
50 1.54 19 5.0 38.0 21
60 1.47 20 6.0 35.0 21
70 1.42 21 7.0 32.0 22
80 1.36 21 8.0 29.0 22
90 1.30 22 9.0 27.0 22
100 1.23 22 10.0 25.0 23
110 1.17 22 11.0 22.0 22
120 1.11 22 12.0 21.0 21
130 1.06 22 13.0 21.0 21
140 1.01 23 13.8 21.0 21
150 0.97 22
160 0.92 22
170 0.88 22
180 0.84 21
190 0.77 21
200 0.73 21

FILL RATES

TIRE FILL RATE

35” X 12.5 FILL RATE
0 to 30 PSI 4 min. 17 sec. (± 10 sec.)
15 to 30 PSI 1 min. 27 sec. (± 05 sec.)
37” X 12.5? FILL RATE
0 to 30 PSI 5 min. 13 sec. (± 15 sec.)
15 to 30 PSI 1 min. 28 sec. (± 05 sec.)

TANK FILL RATE

2.5 GALLON TANK FILL RATE
0 to 200 PSI 4 min. 50 sec. (± 10 sec.)
165 to 200 PSI 1 min. 15 sec. (± 05 sec.)
