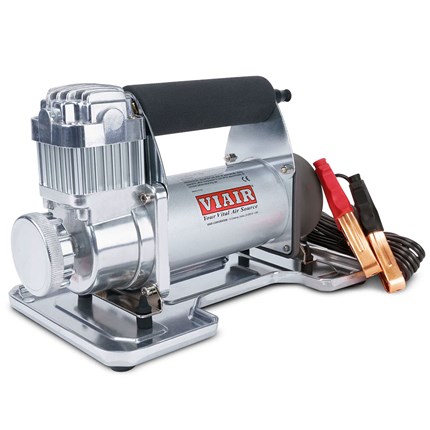

Viair 400P Portable Comprssr Kit (33% Duty, 150 Psi Working Pressure, 40 Min. @ 30 Psi

Thoroughbred Sku #: VIA40043
Manufacturer Sku #: 40043

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$245.30

free-shipping-no-handling
Universal

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
viair_logo

View More Products From

Viair

Product Details

Product Name: Viair 400P Portable Comprssr Kit (33% Duty, 150 Psi Working Pressure, 40 Min. @ 30 Psi
Manufacturer: Viair
Manufacturer Part #: 40043
Thoroughbred Diesel Part #: VIA40043

Fill your car, truck, SUV, or off-road vehicles quickly and easily with the VIAIR portable compressor. With its powerful direct-drive motor, maintenance-free operation, a full hour of runtime, and market-leading IP54 dust and water resistance rating, the 400P Portable Compressor performs perfectly in even the toughest conditions.

PLEASE NOTE:
The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. - Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 400P does not work with the VIAIR Winterization Kit (P/N 90145).

Viair Features:

  • Thermal Overload Protector
  • 5-in-1 Inflator/Deflator Air Hose
    with Inline 100 PSI Gauge
  • I-beam Sand Tray (PN 40043)
  • Diamond-Plate Sand Tray (PN 40050)
  • Deluxe Dual Compartment Carry Bag
  • 40-amp Inline Fuse Holder
  • Dual Battery Clamps
  • 3 pc. Inflation Tips Kit
  • Presta Valve Adaptor
  • For more information on Viair call us at 1-859-737-4966.

SPECS

  • CFM: 2.30 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. 12V Amp Draw: 30-Amps
  • Max. 24V Amp Draw: 15-Amps
  • Ingress Protection Rating: IP54
  • Dimensions: 10.9"L x 5.8"W x 7.5"H
  • Net Weight: 10.40 lbs.
  • Power Cord Length: 8 ft.
  • Air Hose Length: 25 ft.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.30 17 0 65.1 17
10 2.13 19 1.0 58.4 20
20 1.98 21 2.0 53.0 23
30 1.86 23 3.0 48.5 24
40 1.75 24 4.0 44.2 26
50 1.64 25 5.0 40.2 27
60 1.54 26 6.0 37.0 28
70 1.44 27 7.0 33.3 29
80 1.37 27 8.0 30.1 28
90 1.28 28 9.0 27.0 28
100 1.19 29 10.0 22.1 27
110 1.11 29
120 1.04 28
130 0.95 28
140 0.85 27
150 0.71 27

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 2.54 10 0 72.0 10
10 2.26 11 1.0 62.2 11
20 2.12 12 2.0 55.4 12
30 1.94 13 3.0 50.7 13
40 1.84 13 4.0 46.3 14
50 1.70 14 5.0 43.4 14
60 1.62 14 6.0 40.5 14
70 1.55 14 7.0 35.7 14
80 1.48 14 8.0 32.1 14
90 1.41 15 9.0 27.0 14
100 1.27 14 10.0 22.1 14
110 1.20 14
120 1.09 14
130 0.95 14
140 0.85 14
150 0.71 14

FILL RATES

12-VOLT COMPRESSOR

31? X 10.5? FILL RATE
0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
33? X 12.5? FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
35? X 12.5? 'FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 05 sec.)

24-VOLT COMPRESSOR

31? X 10.5? FILL RATE
0 to 30 PSI 2 min. 50 sec. (± 05 sec.)
15 to 30 PSI 1 min. 25 sec. (± 05 sec.)
33? X 12.5? FILL RATE
0 to 30 PSI 4 min. 00 sec. (± 10 sec.)
15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
35? X 12.5? FILL RATE
0 to 30 PSI 5 min. 05 sec. (± 15 sec.)
15 to 30 PSI 2 min. 40 sec. (± 05 sec.)
