Viair 200 Psi 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 Psi Compressor)

Product Name: Viair 200 Psi 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 Psi Compressor)
Manufacturer: Viair
Manufacturer Part #: 20007
Thoroughbred Diesel Part #: VIA20007

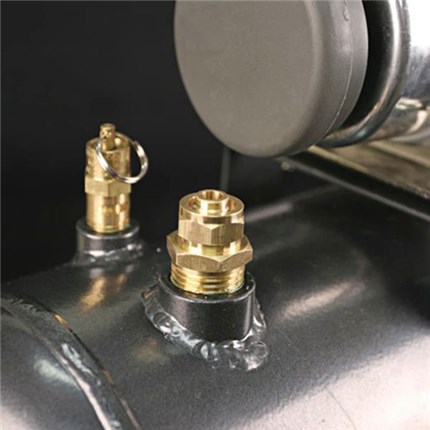

Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.

Viair Features:

• 380C Pewter Air Compressor
• Thermal Overload Protector
• 2.0 Gallon Air Tank

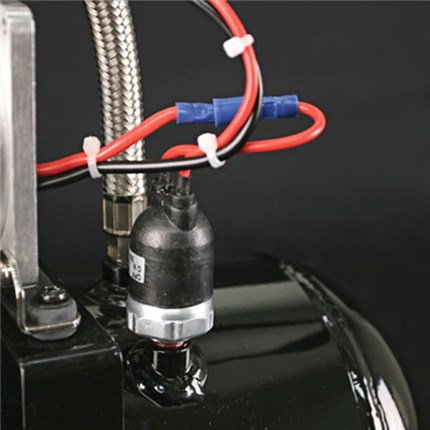

• Pressure Switch (165 PSI On / 200 PSI Off)

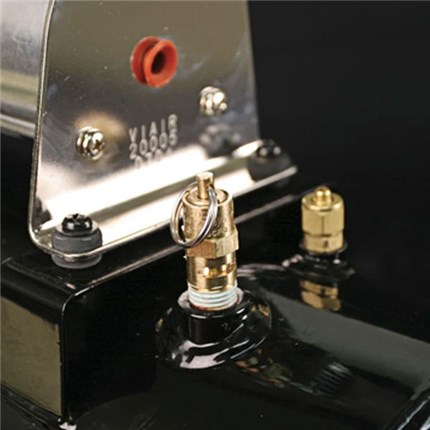

• Safety Valve (250 PSI)

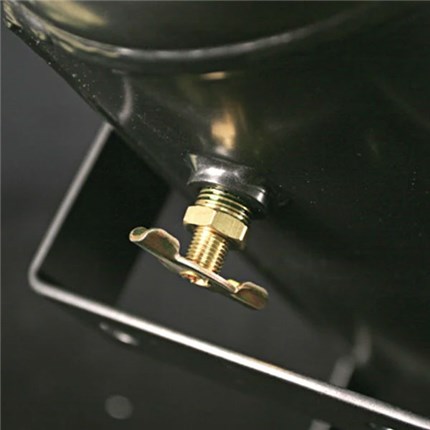

• Drain Cock
• Leader Hose with Check Valve
• For more information on Viair call us at 1-859-737-4966.

SPECS

• CFM: 1.58 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 23 Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 19?L x 5.9?W x 14.2?H
• Net Weight: 21.05 lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

FILL RATES
