Synergy Heavy Duty Tie Rod - 1997-2006 Jeep Wrangler (TJ) | 2004-2006 Jeep Wrangler (LJ) | 1987-2001 Jeep Cherokee (XJ) | 1993-1998 Jeep Grand Cherokee (ZJ) | 1987-1992 Jeep Comanche (MJ)

Product Name: Synergy Heavy Duty Tie Rod - 1997-2006 Jeep Wrangler (TJ) | 2004-2006 Jeep Wrangler (LJ) | 1987-2001 Jeep Cherokee (XJ) | 1993-1998 Jeep Grand Cherokee (ZJ) | 1987-1992 Jeep Comanche (MJ)
Manufacturer: Synergy
Manufacturer Part #: 8121-01
Thoroughbred Diesel Part #: SYN8121-01
Fitment Notes: 1997-2006 Jeep Wrangler (TJ) | 2004-2006 Jeep Wrangler (LJ) | 1987-2001 Jeep Cherokee (XJ) | 1993-1998 Jeep Grand Cherokee (ZJ) | 1987-1992 Jeep Comanche (MJ)

• 1997-2006 Jeep Wrangler (TJ)
• 2004-2006 Jeep Wrangler (LJ)
• 1987-2001 Jeep Cherokee (XJ)
• 1993-1998 Jeep Grand Cherokee (ZJ)
• 1987-1992 Jeep Comanche (MJ)

Requirements and Fitment:

• Wheel back spacing requirements:
  - 15" wheel - max 3.75"
  - 16" wheel - max 4.00"
  - 17" wheel - max 4.50"
  - Minimum of 2" front bump stop spacers required


• Fits vehicles with 2-6" of lift
  2-4" of lift, must use stock pitman arm
  4.5"-6" of lift, must use drop pitman arm

Features:

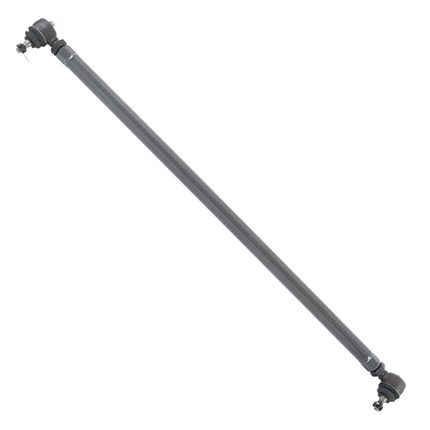

• Tie Rod is made from 1-3/8" 4130 Chromoly and Heat Treated for maximum strength

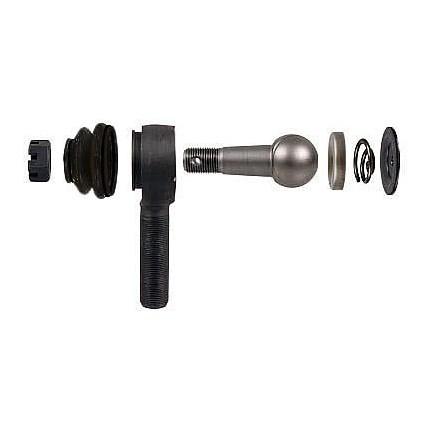

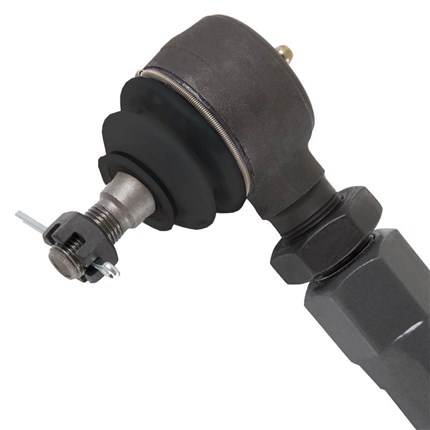

• Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4135-R
• Features LH and RH opposing threads to allow adjustment of tie rod length without removal from vehicle
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• IMPORTANT: Designed to be used with 8121-02 Drag Link only

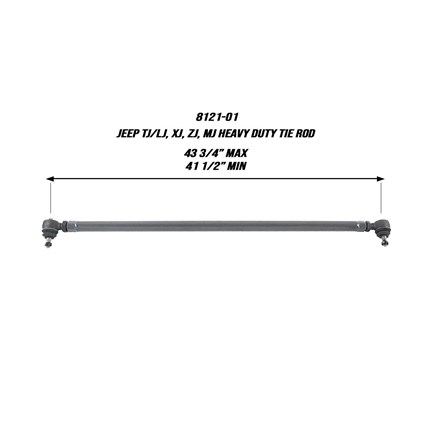

Min/Max Lengths:

Measured in a straight line from Zerk fitting to Zerk fitting

• Tie Rod - Max extended length: 43.750"
• Tie Rod - Min in collapsed length: 41.500"
• Drag Link - Max extended length: 39"
• Drag Link - Min collapsed length: 36.875"

Notes:

• Recommended Fox Steering Stabilizers:
  • IFP - Internal Floating Piston (6401-00),
  • TS - Through Shaft (6402-02),
  • ATS - Advanced Through Shaft (6403-02)
