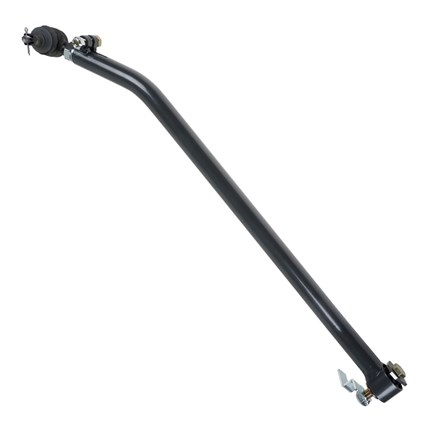

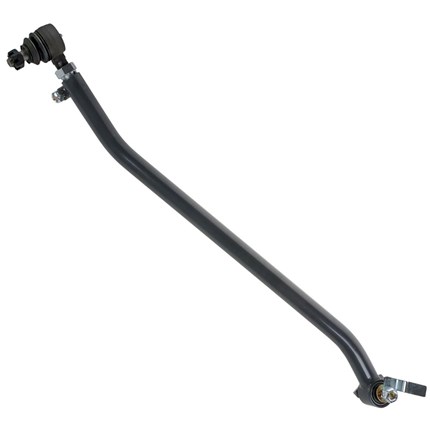

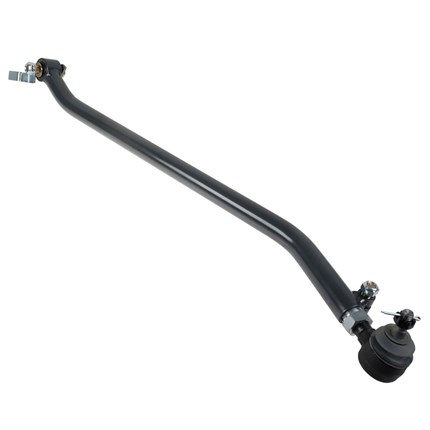

Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar - 1997-2006 Jeep Wrangler (TJ) | 2004-2006 Jeep Wrangler (LJ) | 1987-2001 Jeep Cherokee (XJ) | 1993-1998 Jeep Grand Cherokee (ZJ) | 1987-1992 Jeep Comanche (MJ)

Product Name: Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar - 1997-2006 Jeep Wrangler (TJ) | 2004-2006 Jeep Wrangler (LJ) | 1987-2001 Jeep Cherokee (XJ) | 1993-1998 Jeep Grand Cherokee (ZJ) | 1987-1992 Jeep Comanche (MJ)
Manufacturer: Synergy
Manufacturer Part #: 8155-01
Thoroughbred Diesel Part #: SYN8155-01
Fitment Notes: 1997-2006 Jeep Wrangler (TJ) | 2004-2006 Jeep Wrangler (LJ) | 1987-2001 Jeep Cherokee (XJ) | 1993-1998 Jeep Grand Cherokee (ZJ) | 1987-1992 Jeep Comanche (MJ)

Fitments:

• 1997-2006 Jeep Wrangler (TJ)
• 2004-2006 Jeep Wrangler (LJ)
• 1987-2001 Jeep Cherokee (XJ)
• 1993-1998 Jeep Grand Cherokee (ZJ)
• 1987-1992 Jeep Comanche (MJ)

Features:

• Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar
• Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• Bolts into factory tapered track bar bracket on the frame
• Requires axle mount to be drilled to 9/16"
• Optional welding (required if desired to install axle gusset)
• Made from 1-3/8" 1018 CR Solid Round Bar stock

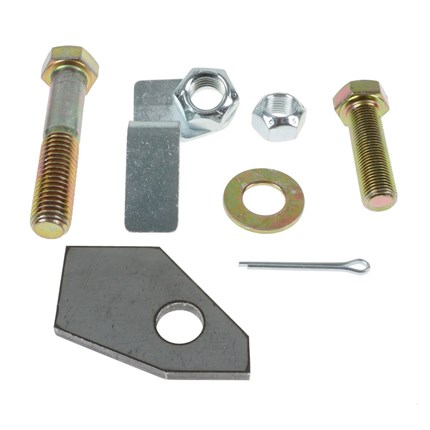

• Includes new Grade 8 mounting bolts and hardware
• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removal from vehicle
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Fits 1-4" Lifts

Notes:

• Factory style replacement track bar for 1-4" of lift
• 2.0" to 3.0" bump stop spacers will be required if the axle is pushed forward slightly from stock and an aftermarket diff cover is used. The larger diameter of the Synergy track bar and tie rod end will interfere with the diff cover if no bump stop spacer is used. We recommend cycling the suspension to full compression with the track bar installed to ensure no interference is occurring.

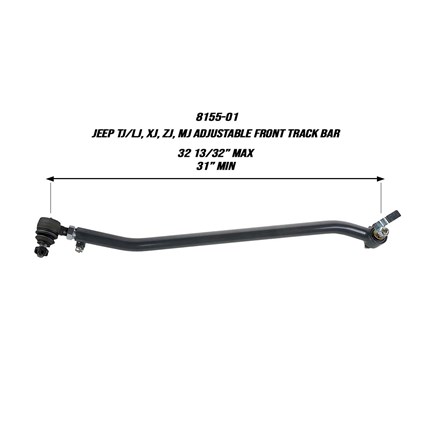

• Approximate collapsed length = 31"
• Approximate extended length = 32.4"
• Replacement bushing is 4323-01, replacement tie rod end is 4135-L

Installation Notes:

• Requires drilling. Sanding and Welding are optional
