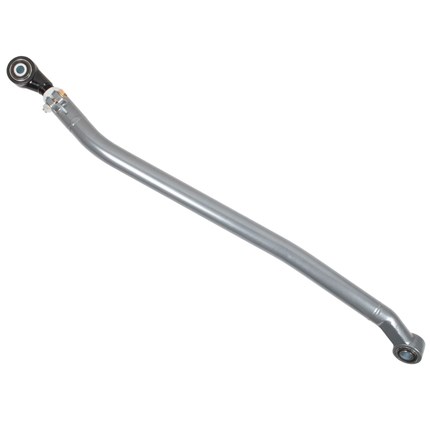

Synergy Heavy-Duty Adjustable Front Track Bar - 2014-2024 Dodge Ram 2500 / 3500 4x4

Product Name: Synergy Heavy Duty Adjustable Front Track Bar - 14-24 Dodge Ram 2500/3500 4x4
Manufacturer: Synergy
Manufacturer Part #: 8704-11
Thoroughbred Diesel Part #: SYN8704-11
Fitment Notes: 2014-2024 Dodge Ram 2500/3500 4x4

Synergy Ram 2014-2024 2500 / 3500 4x4 Heavy Duty Adjustable Front Track Bar is a critical component to correcting axle placement and achieving ideal suspension geometry after installing a suspension lift. Manufactured from 1.75" USA made DOM steel, this track bar significantly improves lateral stiffness and strength over stock to hold up to the abuse of large tires and aggressive offroad driving. Equipped with the Synergy Double Adjuster Sleeve and Pinch Bolt Assembly on one end, you don't even need to remove this track bar from the vehicle to make adjustments! We even topped it off with our maintenance free Dual Durometer Bushings to prevent any unnecessary noise or vibrations and provide unmatched ride quality. We recommend pairing this track bar with the Synergy 2014-2024 Ram Heavy Duty Steering Kit for optimal performance.

Notes:

• Replacement forged end: 4810-11
• Replacement Dual Durometer Bushings: 4328-02
• Supersedes part number 8704-01
• We recommend installing a drop pitman arm and front track bar relocation bracket for lifts over 4 inches
• This track bar is NOT compatible with the AEV Prospector Lift Kit
• Cannot guarantee fitment with aftermarket diff covers

Min/Max Length
Measured in a straight line from center of bolt hole to center of bolt hole

• Min collapsed length: 38-9/16"
• Max collapsed length: 40-5/8"

Synergy Heavy Duty Adjustable Front Track Bar Features:

• Heavy duty 1.75" x 0.188 wall USA made DOM offers improved strength over stock and provides a stronger connection to the road, preventing unwanted vehicle wandering and unnecessary axle movement
• Centers the axle after installing a suspension lift to ensure proper suspension geometry, smooth handling, and consistent tire wear
• Maintenance free Synergy Dual Durometer Bushings isolate noise and vibrations to provide a quiet, smooth ride

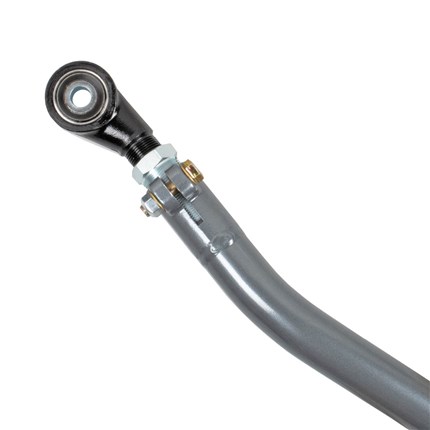

• Fully adjustable without removing from the vehicle with our Synergy Double Adjuster Sleeve and Pinch Bolt Assembly

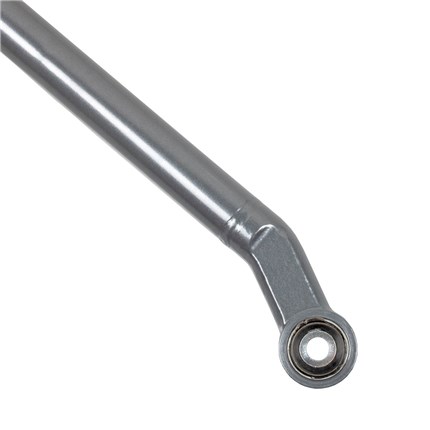

• Offset forged rod end engineered for maximum clearance during articulation
• No jam nuts that are impossible to keep tight
• Compatible with stock steering components, wheels and tires
• Bolts right to factory mounting locations with no modification necessary
• Engineered and precision bent from USA made 1.75" x 0.188 wall DOM tubing for maximum strength
• Best-in-class offset forged rod end with a beefy 1-1/4" shank
• Compatible on trucks with 0-4" of lift height in stock mounting locations with no bump stop spacing required
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Retains factory mounting locations and mounting hardware
• Synergy Dual Durometer Bushings with Teflon Bearing surface for a maintenance free design focusing on performance, articulation, longevity, and ride quality
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly eliminates jam nuts and allows for easy adjustability
• 100% bolt-in components assures and easy, trouble free installation with the use of basic hand tools
• For more information on Synergy call us at 1-859-737-4966

Includes:
