Suncoast 48RE Cat 4 750 HP Transmission with Converter 2004.5-2007 2WD (WITH CONVERTER) (WITH FLEXPLATE)

Thoroughbred Sku #: SUNSC-48RECAT4-04507-2WD-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:

SunCoast-47RE-48RE-Transmission-Install-Packet.pdf

Prop 65:

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal

$10,290.00

+ $400.00 Shipping

* Core Exchange Option:

Terms & Conditions for Cores

Many stock replacement parts such as turbos, injectors, injection pumps, and high pressure oil pumps have a core charge that is associated with the new replacement part. You must return the old part to receive a refund on the core charge.

In some cases, the core is not reusable, such as in the event of a cracked case, at which point the core deposit would not be credited as the core component is not reusable.
Cores that have been disassembled and/or have missing and/or damaged major components will not receive full core credit.
Returned cores must be on a "like-for-like" basis, meaning that the returned core has the exact same fitment as the remanufactured component that was purchased. If the core is not "like-for-like," your core may not be eligible for return/credit.
You are responsible for core return shipping cost.

If you plan on returning your core you have two options.

Thoroughbred Diesel offers defer the upfront core charge when purchasing via credit card payment.

OPTION 1: You can accept the core charge, which means you will be charged for the part AND the core at time of purchase. You still have the option to send it back, and if you do, the core will be refunded back on the card used, presuming the core meets core criteria and the core is returned within 30 days from the time your order is received. If you return your core after 30 days you may refer to the Core Charge Timeline below as to how you will be refunded.

Core Charge Timeline

If the core is returned after 30 days, 90% of the core will be refunded.
If the core is returned after 60 days, 70% of the core will be refunded.
If the core is returned after 90 days, 50% of the core will be refunded.
After 6 months cores will be accepted at Thoroughbred’s discretion.

OPTION 2: You can defer the core charge. If you defer, you will not be charged for the core at the time of purchase. You will have 21 days from the time your order is received to send the core back. If the core is not received within the 21 days, your credit card will be charged for the core amount on your order. If you return your core after 21 days, you may refer to the Core Charge Timeline below as to how you will be refunded. When Core deferral (Pay Core Charge Later) is limited to payment by credit card only. ***When using PayPal or Affirm as your method of payment “Core Deferral (Pay Core Charge Later)” is not available. The core must be paid at time of purchase. ***

Core Charge Timeline

If the core is returned after 21 days, 90% of the core will be refunded.
If the core is returned after 60 days, 70% of the core will be refunded.
If the core is returned after 90 days, 50% of the core will be refunded.
After 6 months cores will be accepted at Thoroughbred’s discretion.

Core Return Procedure

Please keep all original packaging of your new item to be used for the core return.
Drain all fluids: oil, fuel, etc. out of the core before it is returned.
Place any plastic plugs or caps received on the new item back onto the core.
To insure UPS, Fed Ex, or USPS will not reject the package due to fuel or oil leakage, please wrap the core in a plastic garbage bag.
Place core inside the box.
If core return paperwork was inside the box, please complete the form and send back with the core.
Please provide a tracking number to [email protected]. Without a confirmed tracking number we cannot guarantee your core refund
If you have questions please call our core department 859-737-4966 ext. 5

I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT
Add Transmission Fluid to your order?

QTY:

Product Details
Youtube Videos
Reviews
Questions & Answers

Product Details

Product Name: Suncoast Category 4 SunCoast 650HP 48RE Transmission - 2003-2007 Dodge 48RE
Manufacturer: Suncoast
Manufacturer Part #: SC-48RECAT4
Thoroughbred Diesel Part #: SUNSC-48RECAT4-CRE
Fitment Notes: 2004.5-2007 2WD Dodge 48RE

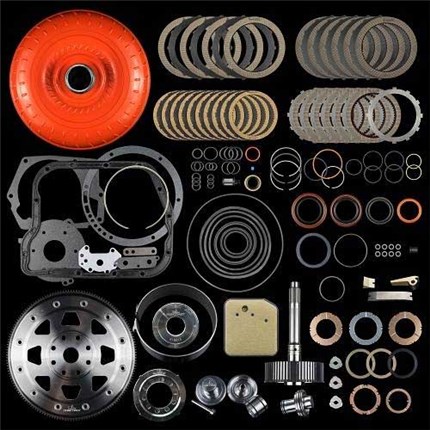

This Transmission Includes the Following:

Custom calibrated lab tested valve body
High flow 48RE filter
New front pump bushing
New Thrust washers
New Torrington Thrust Bearings
Suncoast billet accumalator piston
Suncoast billet intermediate servo
Suncoast custom ratio billet band lever
Suncoast billet band strut
Suncoast billet band
Suncoast billet band anchor
New overdrive and lockup solenoids
Upgraded governor solenoid
Suncoast billet forward piston
Suncoast billet direct Piston
Billet forward drum
Billet output shaft
Suncoast billet triple disc torque converter
23 spline billet input shaft
Billet SFI Flexplate
Double Deep Pan

The new Suncoast 48RE transmission is rated at 700hp. This is a perfect upgrade for someone towing and hauling or who has a heavily modified vehicle.

There are several key components in this transmission that are upgraded to not only improve performance, but also restore hydraulic integrity.

The factory accumulator piston, being plastic, deteriorates over time, causing it to crack or simply break in many pieces. It is also not uncommon to see this accumulator piston cross-leak within the bore, which is the reason we engineered this piston to be a four-ring sealing piston, versus the factory two-ring. It is standard in all of our units to replace this factory piston with our improved billet piston to not only restore hydraulic integrity but to improve reliability, as well.

To alleviate the issues with the factory intermediate band circuit, we address many facets of the all-too-common second gear band burn-ups on the 48RE Transmission - the first facet being the servo that applies the intermediate band itself. We replace the factory cast servo with a larger billet servo that has more apply pressure and improved release. This servo also is improved to a four-ring servo, versus the factory two-ring, with the primary sealing ring being square-cut teflon and the secondary being an o-ring.

To continue with the upgrades to the band circuit we add a billet band anchor, billet band strut, and a billet apply lever. The band is a further upgrade to a pro-series, carbon-graphitic band to improve friction performance.

The valve body and pump are also recalibrated, and the separator plate is replaced with a new laser-cut, SunCoast-proprietary plate. This allows not only for more optimal line pressure, but also increased volume. Each one of these valve bodies and pumps is custom built for the customer's individual needs, whether it be towing, street performance or the track.

The other addition to this kit is our billet one piece input shaft. This shaft is made from 300 maraging steel and is then heat treated and stress relieved to handle the additional demands of higher torque and stress loads. This shaft is precision ground to make it a true drop in replacement.

The Suncoast 48RE transmission also comes with new overdrive and lockup solenoids. The governor pressure sensor (transducer) is also replaced with a new one. in addition all new 48RE transmissions get upgraded with the DNJ billet solenoid housing and upgraded governor solenoid.

The billet triple disc torque converter that comes with this new Suncoast 48RE transmission is lined with carbon-graphitic clutch material and is equipped with a precision-CNC-machined, forged billet apply piston to ensure no deflection occurs. The in conjunction with our billet cover ensures many years of performance.

This 700 horsepower Suncoast 48RE transmission also comes with a billet SFI certified flex plate.

Warranty: 3 Year Unlimited Mile

Why Choose SunCoast? Our products are engineered for superior strength, reliability, and optimized performance under heavy-duty conditions. Whether you're towing, racing, or daily driving, SunCoast ensures your transmission components deliver maximum durability and efficiency.

Shop SunCoast Diesel Products Today! Experience unmatched quality and innovation with SunCoast's industry-leading parts. Upgrade your diesel performance with confidence.
