HomeShop by DepartmentPerformanceTransmissionsValve BodySuncoast 10L1000 Valve Body & Pump Kit With Enhanced Oil Flow - 20-25 GM Duramax L5P 6.6L

Suncoast 10L1000 Valve Body & Pump Kit With Enhanced Oil Flow - 20-25 GM Duramax L5P 6.6L

Thoroughbred Sku #: SUNSC-10L1000-PVB-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Documents - PDF:

suncoast-transmission-warranty-policy-2026.pdf

PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal

$2,295.00

* Core Exchange Option:

Terms & Conditions for Cores

Many stock replacement parts such as turbos, injectors, injection pumps, and high pressure oil pumps have a core charge that is associated with the new replacement part. You must return the old part to receive a refund on the core charge.

In some cases, the core is not reusable, such as in the event of a cracked case, at which point the core deposit would not be credited as the core component is not reusable.
Cores that have been disassembled and/or have missing and/or damaged major components will not receive full core credit.
Returned cores must be on a "like-for-like" basis, meaning that the returned core has the exact same fitment as the remanufactured component that was purchased. If the core is not "like-for-like," your core may not be eligible for return/credit.
You are responsible for core return shipping cost.

If you plan on returning your core you have two options.

Thoroughbred Diesel offers defer the upfront core charge when purchasing via credit card payment.

OPTION 1: You can accept the core charge, which means you will be charged for the part AND the core at time of purchase. You still have the option to send it back, and if you do, the core will be refunded back on the card used, presuming the core meets core criteria and the core is returned within 30 days from the time your order is received. If you return your core after 30 days you may refer to the Core Charge Timeline below as to how you will be refunded.

Core Charge Timeline

If the core is returned after 30 days, 90% of the core will be refunded.
If the core is returned after 60 days, 70% of the core will be refunded.
If the core is returned after 90 days, 50% of the core will be refunded.
After 6 months cores will be accepted at Thoroughbred’s discretion.

OPTION 2: You can defer the core charge. If you defer, you will not be charged for the core at the time of purchase. You will have 21 days from the time your order is received to send the core back. If the core is not received within the 21 days, your credit card will be charged for the core amount on your order. If you return your core after 21 days, you may refer to the Core Charge Timeline below as to how you will be refunded. When Core deferral (Pay Core Charge Later) is limited to payment by credit card only. ***When using PayPal or Affirm as your method of payment “Core Deferral (Pay Core Charge Later)” is not available. The core must be paid at time of purchase. ***

Core Charge Timeline

If the core is returned after 21 days, 90% of the core will be refunded.
If the core is returned after 60 days, 70% of the core will be refunded.
If the core is returned after 90 days, 50% of the core will be refunded.
After 6 months cores will be accepted at Thoroughbred’s discretion.

Core Return Procedure

Please keep all original packaging of your new item to be used for the core return.
Drain all fluids: oil, fuel, etc. out of the core before it is returned.
Place any plastic plugs or caps received on the new item back onto the core.
To insure UPS, Fed Ex, or USPS will not reject the package due to fuel or oil leakage, please wrap the core in a plastic garbage bag.
Place core inside the box.
If core return paperwork was inside the box, please complete the form and send back with the core.
Please provide a tracking number to [email protected]. Without a confirmed tracking number we cannot guarantee your core refund
If you have questions please call our core department 859-737-4966 ext. 5

I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Reviews
Questions & Answers

Product Details

Product Name: Suncoast 10L1000 Valve Body & Pump Kit With Enhanced Oil Flow - 20-25 GM Duramax L5P 6.6L
Manufacturer: Suncoast
Manufacturer Part #: SC-10L1000-PVB
Thoroughbred Diesel Part #: SUNSC-10L1000-PVB
Fitment Notes: 2020-2025 GM Duramax L5P 6.6L

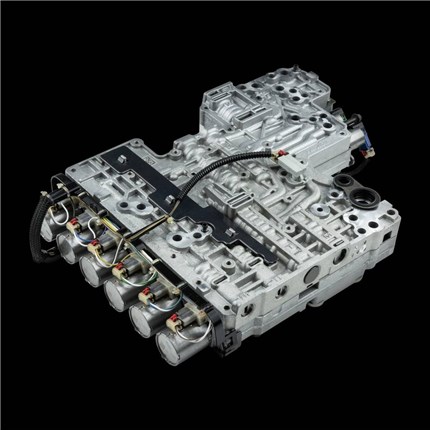

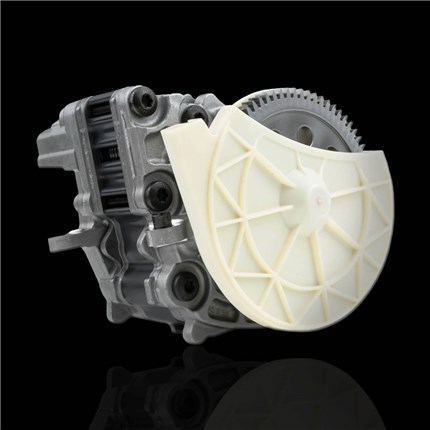

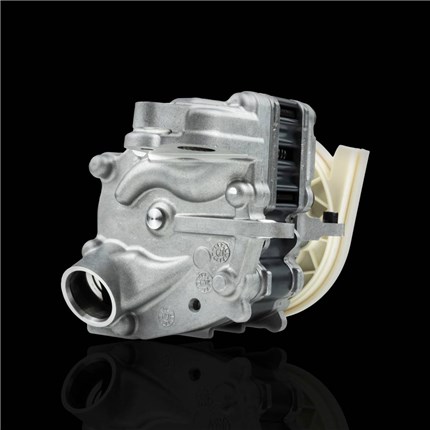

The Pro Loc Valve Body and Pump

With the SunCoast 10L1000 Pro Loc Valve Body, we are addressing several key issues we have seen in regard to the 10L1000 transmissions. This is not an approach that is simply bumping in more line pressure in hopes of ascertaining more clamping force; it’s a multi-faceted approach addressing several key issues when exposing these units to more demanding driving environments. These range from heavy towing and hauling to street racing and drag racing.

The factory 10L1000 transmission lock-up circuit is an impressive one, in that it can make converter lockup seem somewhat uneventful. The refinement in its engagement is definitely next-level to what we have seen in the past. As nice as this feels in reference to the NVH (Noise Vibration Harshness), when we start introducing situations where the load demands are testing the limits or outside what the vehicle was initially designed for, it can become a huge problem.

In our SunCoast 10L1000 Valve Body we are specifically looking to decrease the time from initial lock-up apply to zero turbine slip. In doing this, we are changing the lockup circuit by replacing the torque converter clutch (TCC) valve in order to increase lockup holding apply fluid pressure. The lockup oil transition time is also improved by modifying critical oiling circuits for the fluid to reach the TCC clutch, resulting in quicker apply time, and therefore, reducing TCC clutch degradation. By reducing degradation per apply cycle, we are allowing for improved reliability and performance.

(NOTE: For maximum results in power levels exceeding 800HP, it is highly recommended that the TCC apply offset be changed in the factory file calibration)

The next facet we address is the lube circuit. The lube circuit on the 10L1000 transmission is responsible for supplying oil to the planets, clutches, bushings, etc. From the factory, the lube circuit oil is dispersed throughout the transmission as low as 6 PSI. Under normal load demands, this is perfectly acceptable. In more stressful and demanding situations, an increase in lubrication to clutches, steels, planets is ideal for removing heat and dealing with the increased demands.

In our 10R140 Valve Body we are specifically addressing this circuit from 6 PSI to a whopping 20 PSI. This is a 250% improvement from the factory calibration, resulting in reduced frictional heat generated. This reduction in heat helps lessen premature failure that can become increasingly evident in high-horsepower applications.

Another modification to our SunCoast Pro Loc 10L1000 Valve Body involves the regulator valve (latch valve) circuit. This oil circuit is responsible for fully engaging the clutches, allowing for full clutch line pressure. In factory form, the regulator valve we are specifically targeting is responsible for A, B, C, and F clutch packs. Of course, our primary clutch pack concern is the 'F" clutch, which tends to be the first and most prominent clutch pack failure with the 10L1000 in higher horsepower or more demanding environments.

In a factory 10L1000 valve body calibration, the regulator valve (latch valve) becomes fully engaged, allowing full fluid flow for engagement at 120 psi. When this occurs, the oncoming clutch pack has maximal clamping force. When the clamping force is engaged to max capacity, we ascertain the greatest static and dynamic holding capacity. In stock form or even mildly modified vehicles, this is perfectly suitable; however, when we expose the vehicle to a more demanding environment this can be a weak link.

With our SunCoast 10L1000 Valve Body we are decreasing the required pressure to fully engage the regulator to only 80psi. This is a 33% decrease in pressure needed to maximally engage the clutch regulator valve (latch valve) resulting in a quicker shift apply when engaging clutches A, B, C and F. This quicker engagement not only shortens shift times, but it also decreases the heat resonating in the clutch pack, preventing premature degradation and extending clutch life. To improve this shift calibration even more, SunCoast is evacuating non-critical oil to increase apply rate.

The factory overall line pressure is modified on this new SunCoast pump/valve body combo. SunCoast is increasing overall main line pressure as much as 60psi. This additional line pressure not only increases the maximal clamping force of the individual clutch packs but also increases overall pump volume production. To reduce the potential for runaway pressure and the over-compression of clutch fibers, the SunCoast 10L1000 Valve Body has a built-in bypass, dumping excessive pressure above 420psi.

Suncoast 10L1000 Valve Body & Pump Kit With Enhanced Oil Flow Features:

Increased Line Pressure, as much as 60psi
Increased clamping force on all clutch packs
250% Increase in Cooler Charge Pressure
Increased Lock-up Apply Pressure
33% Decrease in Maximal Pressure Actuation of Clutch Packs
Shortened Shift Times
Improved Clutch Wear
For more information on Suncoast call us at 1-859-737-4966.

Reviews

Submit a question

Is it the same valve body for 24 gm 2500 6.6 gas as for duramax with Allison trannys?

Roger Reed | 8/16/2025
No designed for Duramax engines.
Whats the lead time?

Justin brenner | 7/30/2025
Due to increased demand, the 10L1000 valve body is currently build to order. Please allow up to 90 business days from the time of purchase for processing and fulfillment.
