South Bend Street Street Dual Disc all organic (Includes Input Shaft Upgrade), 550hp, 1100 torque, NV5600 Trans - 94-04 Dodge NV4500 5 sp trans - 98.5-00 Dodge NV5600 NON HO 6 sp

Thoroughbred Sku #: SBCSDD3250-5K-ORG
Manufacturer Sku #: SDD3250-5K-ORG

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,811.57

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

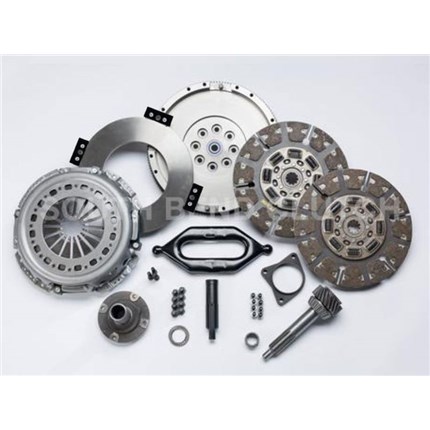

Product Name: South Bend Street Street Dual Disc all organic (Includes Input Shaft Upgrade), 550hp, 1100 torque
Manufacturer: South Bend
Manufacture Part #: SDD3250-5K-ORG
Thoroughbred Diesel Part #: SBCSDD3250-5K-ORG
Fitment Notes: 1994-2004 Dodge NV4500 5 sp trans - 1998.5-2000 Dodge NV5600 NON HO 6 sp

South Bend's Street Dual Disc all Organic Clutch for Dodge 5.9L Cummins Transmission diesels. Includes Input Shaft Upgrade with organic facings for smooth engagement. From daily-driven street performance, to towing, the South Bend Organic Dual Disc offers maximum holding power with easy pedal effort. This clutch is rated to hold up to 550HP & 1100 ft-lbs. The Street Dual Disc is not intended for use in competition applications such as sled pulling.

Note: This clutch is only intended for use with the input shaft upgrade.

South Bend Clutch Features:

  • 550HP & 1100 Ft-Lbs.
  • Organic Facings (Smooth Engagement)
  • Includes Input Shaft Upgrade
  • For more information on This South Bend Clutch kit and more call us at 1-859-737-4966.

Reviews

  • I have a 95 or 6 12 valve Cummins in a 2000 Ford F-350 with a zf6, clutch went bad and I can't find any make or markings on the old one. The bolt pattern is dodge but I'm not sure what would fit into the zf6?

    Sam Lewis | 3/27/2021

    This is not the correct clutch.

  • Do i need the pump that comes with the new clutch or can i use my old pump from the truck?

    Alex | 2/20/2020

    If you mean the stock hydraulics, South Bend recommends going with the upgrade hydraulics.

  • Why Might My Clutch Slip If I Try To Accelerate In Overdrive?

    Eric Schumann | 5/16/2019

    Too much torque at too low an RPM. I go back to the automatic. If you were driving down the road in automatic overdrive, with the cruise control on, and approached a hill, the system (in order to keep a constant speed) would need to accelerate. The transmission would automatically downshift in order to do so. By keeping the RPM up while accelerating, it is preserving its life. There is a misconception about fuel consumption. People believe that the lower the RPM, the better the mileage, when actually, the opposite is true. All that black smoke you get when you step on it in overdrive is unburned (and therefore wasted) fuel. Keep the RPM up by downshifting into the right gear, and your truck will run much better.

  • Is It Wrong To Tow In Overdrive?

    Eric Schumann | 5/16/2019

    This is a very good question, because most people do just that. The trouble is, it is too hard, with all the variations in terrain, to keep a constant speed. Therefore, you end up accelerating too much in that high gear. Many trucks, with automatic transmissions, set up for towing, will include a button for "tow mode" which locks the transmission out of overdrive. The main reason for that is, the transmission would be constantly downshifting. The best answer is to say; watch your RPM, if it starts to drop too low, rather than stepping down on it in 6th, drop to 5th ...and maybe stay there.

  • Can I Sled-Pull With My Street Dual Disc Clutch?

    Eric Schumann | 5/16/2019

    The simple answer to that question is...no. The SDD was not designed for that purpose. That being said; I know people do it anyway. Some get away with it, and drive home (with both their feet), and some do not. The risk is that the amount of heat produced when you launch with a sled behind you, can fracture (and fragment) the cast iron plates in the clutch. Competition clutches are made out of steel for that very reason. Safety is a factor that should be considered above all.
