Show your support with a Thoroughbred Diesel t-shirt, sweatshirt, or sticker decal.
Thoroughbred Sku #: SBT10-1003 Manufacturer Sku #: 10-1003
$1,349.00
2011 - 2016 Ford F250
2011 - 2016 Ford F350
2011 - 2016 Ford F450

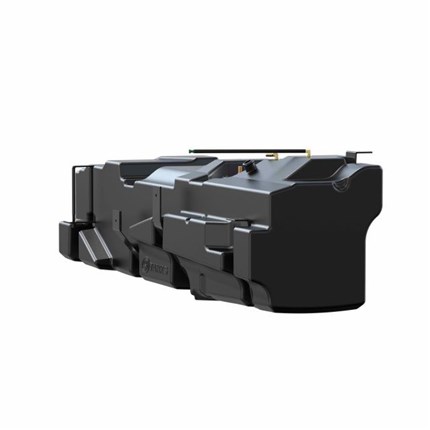

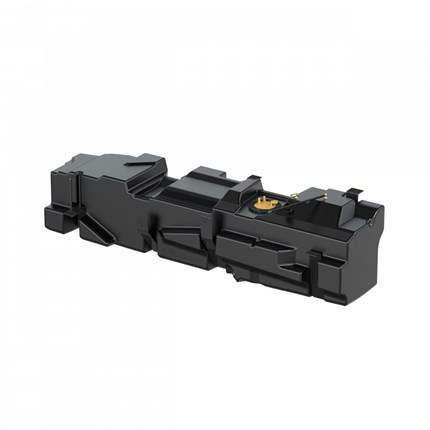

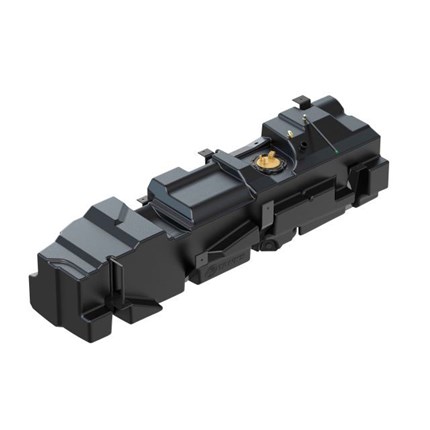

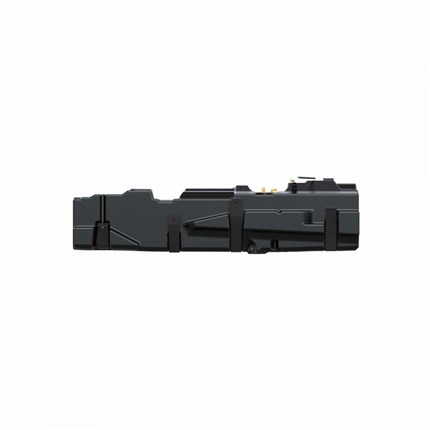

Product Name: S&B Tanks 70 Gallon Replacement Tank Manufacturer: S&B Tanks Manufacturer Part #: 10-1003 Thoroughbred Diesel Part #: SBT10-1003 Fitment Notes: 2011-2016 Ford Powerstroke Crew Cab Long Bed
S&B's 70 gallon fuel tank replaces the OEM 35 gallon fuel tank. The replacement tank sits 3" below the OEM fuel tank shield and hold approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70 Gallon tank with have a greater fuel reserve.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
More Fuel. Less Hassle.
Holds 5 more gallons than competitor tanks!
S&B's 70-gallon fuel tank directly replaces the OEM 31-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!
EASY RECALIBRATION FOR DISTANCE TO EMPTY
We teamed up with EZ Lynk to make adjusting your Distance to Empty (DTE) free and easy.
Save Time. Go Further. Get More Out of Your Truck.

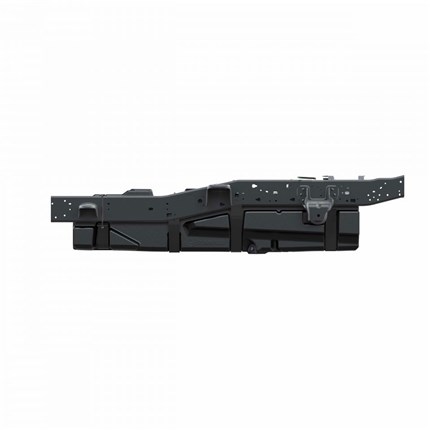

The tank sits 3" below the OEM fuel tank shield. Install can be done in 2-3 hours and does not require any cutting, drilling or modification.
WARNING For Those Using Auxiliary Fuel Tanks
On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.
Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
S&B Tanks Features:
The tank is for diesel fuel . no DEF fluid. You would retain the DEF tank for your vehicle.
Here are the installation instructions
No, this tank is designed for the 2011-2016 cc lb trucks.
The walls of the tank are 1/4-inch thick.
No diesel tanks only at this time.
No modifications needed for the DEF tank.
S&B Tanks Replacement Tank For2003-2020 Dodge/Ram Cummins Crew, Quad & Mega Cab Short Bed
No it wont fit. The 10-1005 is specific to the 2500 Dodge Crew Cab Shortbed trucks, S&B Tanks will be releasing late next month a tank for all the Mega Cab applications which is still in R&D at this time.
2013-20 Ram Cummins 6.7L, Crew Cab Short Bed (6’ 4”).
52 Gallon Replacement Tank For 2013-19 Ram Cummins 6.7L, Crew Cab Short Bed
