Thoroughbred Sku #: SBT10-1001 Manufacturer Sku #: 10-1001
$849.00
2011 - 2016 Ford F350
2011 - 2016 Ford F450
2011 - 2016 Ford F550

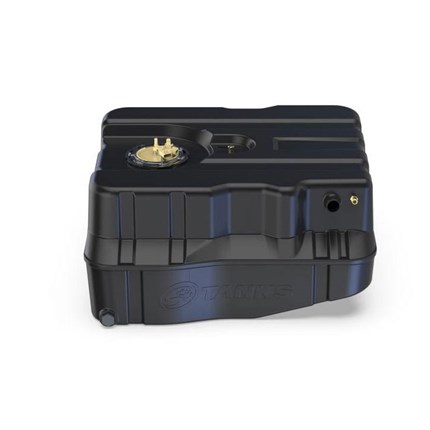

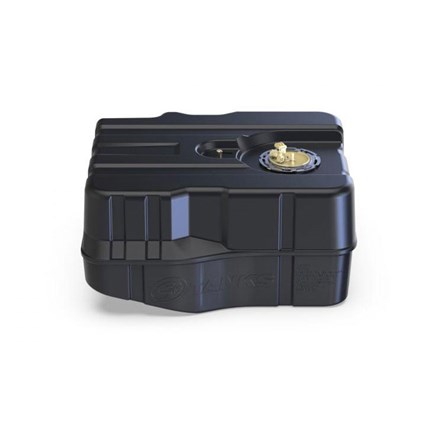

Product Name: S&B Tanks 40 Gallon, After Axle, Replacement Tank Manufacturer: S&B Tanks Manufacturer Part #: 10-1001 Thoroughbred Diesel Part #: SBT10-1001 Fitment Notes: 2011-2016 Ford Powerstroke 6.7L, Cab Chassis
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
The Problem
The 2011-2016 Ford F350, F450 & F550 Cab and Chassis trucks are equipped with an after-axle 40 gallon fuel tank. These OEM tanks have a failure prone coating inside the tank. Once the coating becomes unstable inside the tank, the laminate peels off and gets picked up into the fuel system. If not addressed, the containments can ruin the entire fuel system on the truck.
The Solution
S&B Tanks are made out of Crosslink Polyethylene. This material will not delaminate and is the SOLUTION to fixing issues with tank delamination. If you truck is not showings signs of delamination, this tank is a great way to protect fuel system.
OEM Style Locking Ring
Easily sercure your OEM sending unit into the S&B tank by transfering over your orginal Ford locking ring. This is a faster and easier way to put sercure the sending unit into the S&B Tank.
WARNING For Those Using Auxiliary Fuel Tanks
On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.
Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
S&B Tanks Features:
30.21" X 31.22" X 14.95. no you use your sending unit. No
No,this tank designed for 2011-16 Ford Powerstroke 6.7L, Cab Chassis
The walls of the tank are 1/4-inch thick.
No diesel tanks only at this time.
No modifications needed for the DEF tank.
S&B Tanks Replacement Tank For2003-2020 Dodge/Ram Cummins Crew, Quad & Mega Cab Short Bed
No it wont fit. The 10-1005 is specific to the 2500 Dodge Crew Cab Shortbed trucks, S&B Tanks will be releasing late next month a tank for all the Mega Cab applications which is still in R&D at this time.
2013-20 Ram Cummins 6.7L, Crew Cab Short Bed (6’ 4”).
52 Gallon Replacement Tank For 2013-19 Ram Cummins 6.7L, Crew Cab Short Bed
