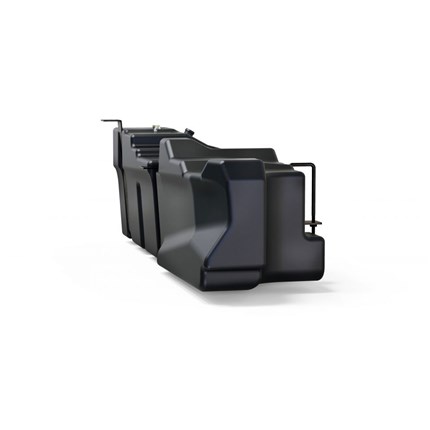

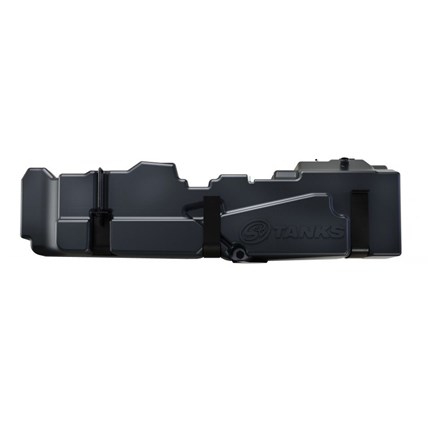

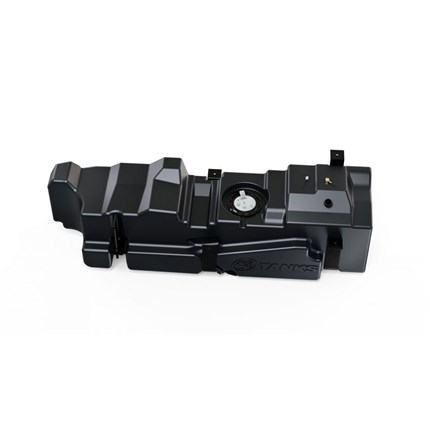

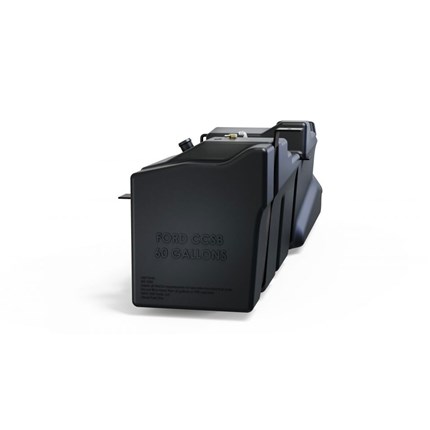

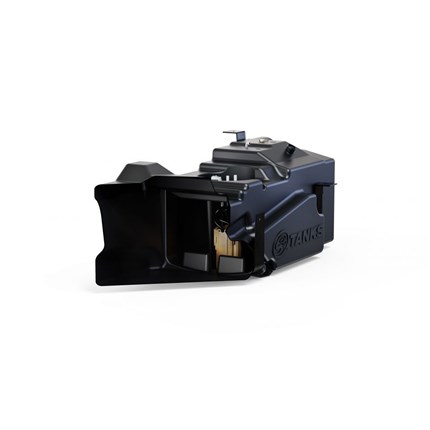

S&B Tanks 56 Gallon Replacement Tank for 2011-16 Ford Powerstroke Crew Cab Short Bed

Thoroughbred Sku #: SBT10-1000
Manufacturer Sku #: 10-1000

Item Options:

Install Sheet - PDF:
<a href="https://www.sbtanks.com/10-1000install" target="_blank">https://www.sbtanks.com/10-1000install</a>
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,249.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: 56 Gallon Replacement Tanks
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1000
Thoroughbred Diesel Part #: SBT10-1000
Application: 2011-2016 Ford Powerstroke Crew Cab Short Bed

Our 56 gallon fuel tank replaces the OEM 26 gallon fuel tank and sits only 2.4" lower. The install can be done in 2-3 hours and does not require any cutting, drilling or modifications.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

Save Time. Go Further.

Being stuck with only a 26 gallon fuel tank isn't fair. You end up spending more time looking for fuel stations and paying high fuel prices. Install a S&B Fuel tank and get more out of your truck.

TRANSFER PUMP & AFTERMARKET LIFT PUMP

Save space in your truck bed and pull fuel out of your large S&B Tank with our GPI Transfer pump kit.

This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues"  common with aftermarket lift pumps.

EASY RECALIBRATION FOR DISTANCE TO EMPTY

We teamed up with EZ Lynk to make adjusting your Distance to Empty (DTE) free and easy.

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

Features:

  • 56 Gallon Capacity
  • Anti-wave Internal Baffles
  • Reuses Factory Sending Unit
  • Integrated Transfer Pump Fitting
  • Patent-Pending Integrated Fuel Sump
  • Double Coated Stainless Steel Hardware
  • High-Density Crosslink Polyethylene Construction
  • Direct Bolt-In Installation - No Modifications Needed
Tank Type Midship
S&B Capacity (Approximate) 56 gallons
Weight (Dry) 50lbs
Ground Clearance Compare to OE Tank 2" lower
Sump No
Drain Yes
Sending Unit OE
Straps Included Yes
Compatible with OE Skid Plate No
Compatible with Gooseneck and 5th Wheel Yes
Transfer Pump Ready Yes
Embedded Fitting Thread Size 1/2" NPT

Reviews

  • Does the ez lynk auto agent 2.0 come with the fuel tank to adjust the Distance to empty if not what does or would it cost extra?

    Justin | 1/31/2023

    No. you would contact S&B TANKS for the EZ Lynk.

  • Is this product made in usa

    John Weller | 7/24/2021

    S&B is located in Fontana, California.

  • I have air bags and B&W fifth wheel hitch will it fit with theses items installed?Thanks

    Greg Schroeder | 4/12/2020

    Yes, the tank will not be affected with either of those installed, so long as everything is mounted in the correct locations and are not modified.

  • Does this replacement tank have Accommodations for DEF tank?

    Chad | 12/12/2022

    No modifications needed for the DEF tank.

  • I have a 2004 Dodge Ram 2500 S.A.D. do you make a Right Hand Auxiliary tank to increase diesel volume i have a camper shell and no way for in bed tank to be able to refuel.

  • That did not answer my question. Didn't say if it will or won't. Same bed same stock tank as the crew cab as does the mega cab short bed. So will this tank work or have other options that are not a titan tank. I need this tank Bc the sump on it and putting a lift pump on my truck.

    Andrew | 3/6/2020

    No it wont fit. The 10-1005 is specific to the 2500 Dodge Crew Cab Shortbed trucks, S&B Tanks will be releasing late next month a tank for all the Mega Cab applications which is still in R&D at this time.

  • I have a 2014 ram 2500 mega cab. Will the 52 gallon Tanaka still work on my truck since it is a short bed?

    Andrew | 3/5/2020

    2013-20 Ram Cummins 6.7L, Crew Cab Short Bed (6’ 4”).

  • My 2019 Dodge Ram 3500 short bed (not a dually) only has a 32 gal. tank. I do not want an in bed tank. Do you make a larger capacity stock tank replacement?

    Gary Weed | 9/26/2019

    52 Gallon Replacement Tank For 2013-19 Ram Cummins 6.7L, Crew Cab Short Bed
