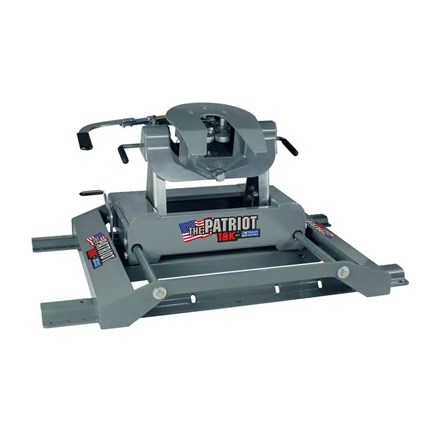

B&W Hitch 18K Patriot Slider 5th Wheel Hitch Kit

Thoroughbred Sku #: BNWRVK3270
Manufacturer Sku #: RVK3270

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm -



Add a Universal mounting rails sold separately (part # RVR3200)?

Product Details

Product Name: B&W Hitch 18K Patriot Slider 5th Wheel Hitch Kit
Manufacturer: B&W
Manufacturer Part #: RVK3270
Thoroughbred Diesel Part #: BNWRVK3270
Fitment Notes: Universal

The versatile new 18,000-pound Patriot rail-mounted slider complements B&W's full line of hitches and is built to exacting specifications for smooth, flawless and virtually inaudible operation. Unlocking the slider hitch is made effortless, even on irregular terrain, via the locking mechanism's gear-reduced cam ratio design, which gives the user mechanical advantage. The Patriot's two, solid one-inch tubular steel carriage rails are designed with sturdy center supports that prevent the rails from deforming or binding as a result of flexing under load. Hourglass-shaped rollers convey the carriage mechanism with fluid motion, regardless of topography. Once unlocked, the hitch is free to slide back into its maneuvering position and afterward, it glides up to its locked position just in front of the rear axle. The Patriot 18K slider makes it easy to engage and disengage a trailer, as well. Thanks to its cam-lock design and three-quarter-inch-thick wrap-around jaws, an operator can couple or uncouple any trailer, regardless of the lay of the land. Pivot arms feature tough polyurethane bushings that allow the engaged coupler head to pivot smoothly, and the fully articulating head is cushioned by an integrated leaf spring. B&W Trailer Hitches specializes in designing and engineering trailer hitches and aftermarket truck/trailer accessories, and is proud of its reputation as an exceptional U.S.-based manufacturer and innovator.

B&W Hitch 18K Patriot Slider 5th Wheel Hitch Kit Features:

  • Universal fitment
  • 18,000 lbs trailer weight
  • 4,500 lbs tongue weight
  • Automatic latching in both directions of slide
  • Fully articulating head allowing front to back and side to side pivoting
  • Three vertical adjustments from 17" to 19"
  • Easy to Reach, Cam Action Handle means easy release even when parked on unlevel sites
  • 3/4" wrap around jaws for a strong, worry-free connection
  • Side to side pivot with spring cushioning
  • Polyurethane bushings prevent metal to metal contact
  • Product Weight: Base 168 lbs, Coupler 52 lbs
  • Footprint: 31.75" Wide x 33.5" Deep
  • Limited Lifetime Warranty
  • Fits all Standard Mounting Rails - Not included
  • Universal mounting rails sold separately (part # RVR3200)
  • Optional custom installation brackets available for some applications, sold separately
  • For more information on B&W call us at 1-859-737-4966


  • Will this system work on a 2016 f350 super duty diesel short bed truck with a fifth wheel 13,000 pound 2021 40 ft rv?

    Lisa James Chrismon | 5/19/2023

    If you do not have the factory puck system , yes.

  • : BNWRVK3270 Is this part number the entire hitch assembly minus the rails? No other parts to buy?

    Robert J Iovinelli | 5/15/2023

    No. just the rails.

  • Will this product work on 5 3/4 foot truck bed

    Larry Coates | 4/22/2023

    What is the year, make ,model?

  • does this mount through bed

    Greg Schnepper | 5/19/2022

    Yes, the rail system will part # RVR3200.

  • It appears to slide. I have a 6'6" bed and will need the 5th wheel to slide. Does this 5th wheel hitch slide?

    DANIEL R FARETTA | 5/29/2021
