RockJock Johnny Joint Front Trac Bar - 20-23 Jeep Gladiator JT

Product Name: RockJock Johnny Joint Front Trac Bar - 20-23 Jeep Gladiator JT
Manufacturer: Rock Jock
Manufacturer Part #: RJ-9120FJLF
Thoroughbred Diesel Part #: ROKRJ-9120FJLF
Fitment Notes: 2020-2023 Jeep Gladiator JT

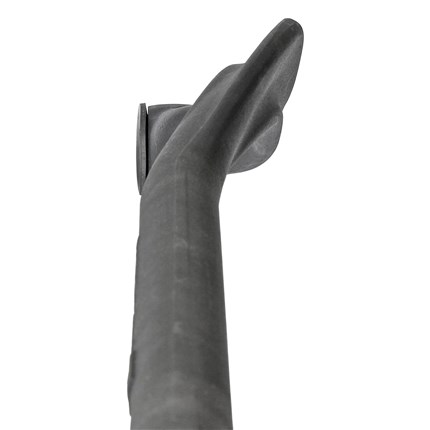

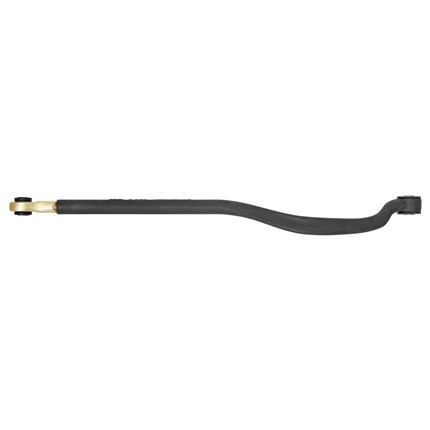

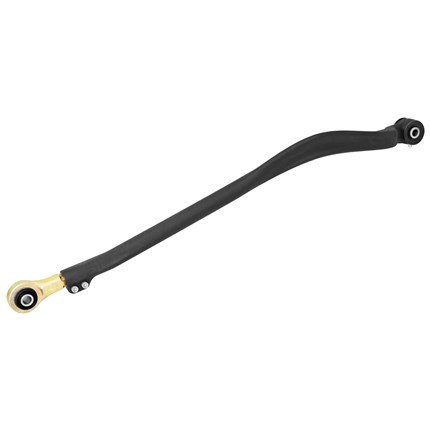

RockJock's Johnny Joint Adjustable Length Front Trac Bar for all JL Wrangler, JL Unlimited and JT Gladiator models features an organic shape that is only attainable via forging! This unique shape provides clearance in all the right places, allowing for maximum articulation and clearance for all differential options. The rigid forged design minimizes (and in some cases completely eliminates) all differential movement feedback to the steering wheel for better overall road feel and drivability.
This bar is intended for us on lifted vehicles and is included in all of our suspension kits, but it may also be adjusted to work on stock vehicles.

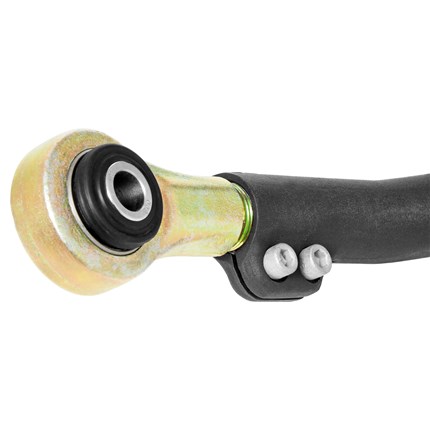

Adjustable end features a pinch clamp, as seen in the photo gallery. For maximum articulation, the frame end of the bar features a greasable Johnny Joint rod end and the axle end features a Flex Axis rod end.
Greasable via zerk fitting. Finish is semi-gloss black powder coat on the bar and gold zinc plating on the adjuster end.
A picture is worth a thousand words, as they say!

Kit Fits:

• JL Wrangler Unlimited (4-door) - All Models
• JL Wrangler (2-door) - All Models
• JT Gladiator - All Models
• JK Wrangler Unlimited (4-door) - All Models w/ RockJock High Steer Kit
• JL Wrangler (2-door) - All Models w/ RockJock High Steer Kit

Kit Includes:

• Johnny Joint Front Trac Bar Assembly

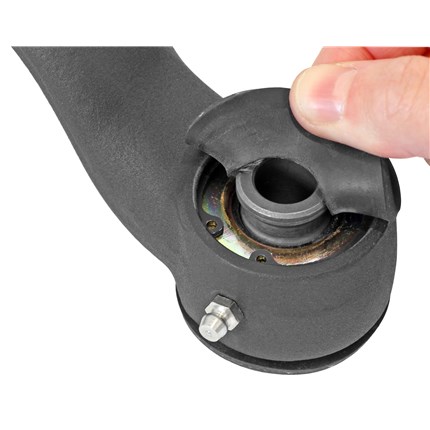

• (2) Rubber Washers (outboard of the Johnny Joint at the frame end to encourage the bar to re-center itself after articulating)

Adjustment Range:

• Closed - 33.234 in.
• Extended - 34.750 in.

Rock Jock Features:

• Forged Adjustable Length Design: RockJock's Johnny Joint Front Trac Bar is forged to achieve a unique shape that ensures maximum clearance and articulation, suitable for JL Wrangler, JL Unlimited, and JT Gladiator models.
• Enhanced Articulation and Clearance: The organic forged design provides optimal clearance for all differential options, allowing for maximum articulation, especially beneficial for lifted vehicles.
• Improved Road Feel: The rigid design of the trac bar minimizes or completely eliminates differential movement feedback to the steering wheel, enhancing overall drivability and road feel.
• Adjustable for Versatility: While designed for lifted vehicles, the adjustable end allows the trac bar to be used on stock vehicles as well, offering flexibility in various setups.
• High-Quality Rod Ends: Features a greasable Johnny Joint rod end at the frame end for maximum articulation, and a Flex Axis rod end at the axle end for enhanced performance.
• Durable Finish: The bar is coated with a semi-gloss black powder coat, while the adjuster end is gold zinc plated, providing both durability and corrosion resistance.
• Easy Maintenance: The trac bar is greasable via a zerk fitting, ensuring long-lasting performance and easy maintenance.
• For more information on Rock Jock call us at 1-859-737-4966.

Notes:

• Factory hardware is retained to attach the trac bar to the axle and the chassis.
• Bar is forged from chromoly in an organic shape to allow for maximum travel and ample clearance when used with aftermarket 1 ton diffs.
• Adjuster features 1 in.-14 RH threads.
• Flex Axis Joint is replaceable, as a unit (presses in and out of gold end forging)
• Applicable Johnny Joint Tool for this Trac Bar: CE-9112T
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G

Parts List:

• Complete Flex Axis Joint Adjuster End: CE-9112NJLF
• Flex Axis Press-In Joint: CE-91122-SP
• Johnny Joint Rebuild Kit (frame end): CE-9112NRK
• Johnny Joint Pivot Ball (frame end): CE-91122-2
• 5/16 in. x 3/4 in. Long Socket Head Allen Bolts: RJ-501209-1
• Rubber Washer: CE-9120RW
• Zerk Fitting (on bar): CE-1103K21
