RockJock Johnny Joint Adjustable Control Arm Set - 20-23 Jeep Gladiator JT

Product Name: RockJock Johnny Joint Adjustable Control Arm Set - 20-23 Jeep Gladiator JT
Manufacturer: Rock Jock
Manufacturer Part #: RJ-150000-101
Thoroughbred Diesel Part #: ROKRJ-150000-101
Fitment Notes: 2020-2023 Jeep Gladiator JT

RockJock’s Johnny Joint Control Arm Set for all JT Gladiator vehicles provides you with extremely heavy duty, adjustable length control arms to replace all 8 of your factory control arms. Adjustable control arms are an absolute must after your lifting your vehicle to get your caster and pinion angles back in check!
Arms feature RockJock’s Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems.
Arms are fully greasable and are finished in semi-gloss black powder coat.

Kit Fits:

• JT Gladiator - All Models

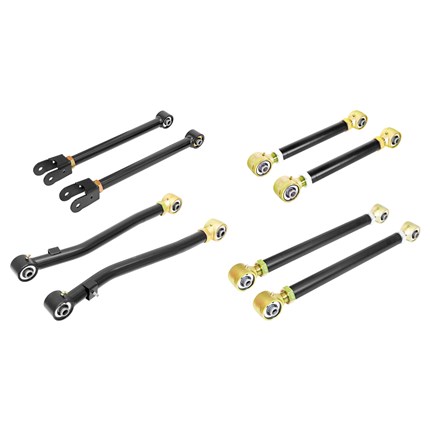

Kit Includes:

• Johnny Joint Front Upper Control Arms
• Johnny Joint Front Lower Control Arms
• Johnny Joint Rear Upper Control Arms
• Johnny Joint Rear Lower Control Arms

Adjustment Range:

• Front Upper = 19.650 in. Closed / 20.705 in. Extended
• Front Lower = 23.900 in. Closed / 25.280 in. Extended
• Rear Upper = 16.535 in. Closed / 19.295 in. Extended
• Rear Lower = 23.303 in. Closed / 26.063 in. Extended

Rock Jock Features:

• Heavy-Duty Adjustable Control Arms: Replaces all 8 factory control arms on JT Gladiator vehicles, essential for correcting caster and pinion angles after lifting.
• RockJock’s Johnny Joints: Features the original high-articulation urethane suspension joints, offering over 30 degrees of articulation per joint.
• Durable Construction: Johnny Joints use a smooth steel ball inside a proprietary urethane shell for superior articulation and shock dampening, without excessive deflection.
• Enhanced Ride Quality: Provides a smooth and comfortable on-road ride while delivering ultimate off-road capability.
• Trusted Performance: Used by multiple commercial suspension companies for both street and off-road systems.
• Fully Greasable: Control arms are designed for longevity with easy maintenance.
• Semi-Gloss Black Powder Coat Finish: Offers a durable, sleek appearance that resists corrosion and wear.
• For more information on Rock Jock call us at 1-859-737-4966.

Notes:

• Arms retain all factory hardware to attach them to the axle and the chassis
• Upper arms are fabricated from 1.25 in. x .188 in. wall DOM steel tubing, lower arms are 1.625 in. o.d. x .250 in. wall DOM steel tubing
• Front upper arms feature 1 in.-14 threads, all other arms feature 1.25 in.-12 threads.
• Rear arms are double adjustable, featuring RH/LH threads
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint Tools for these Control Arms: CE-9112T (front upper) and CE-9110T (all other arms)

Parts List:

• Front Upper Control Arms (pair): CE-9818FUA
• Front Lower Control Arms (pair): CE-9818FLA
• Rear Upper Control Arms (pair): RJ-150400-103
• Rear Lower Control Arms (pair): RJ-150400-101
