AirDog Raptor 4G Lift Pump - 100GPH - 92-00 Chevy Diesel

Thoroughbred Sku #: PFTR4SBC132
Manufacturer Sku #: R4SBC132

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit




View All applications


Product Details

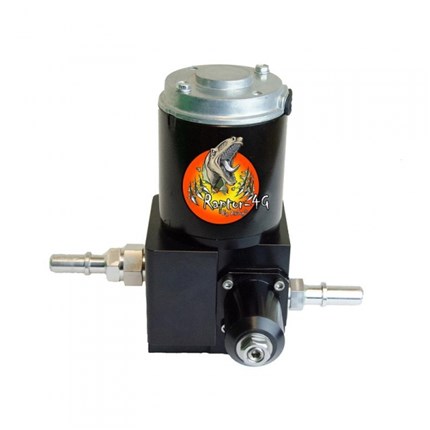

Product Name: Raptor 4G Lift Pump
Manufacturer: AirDog
Application: 1992-2000 Chevy Diesel

The Raptor 4G Lift Pump provides more fuel than stock for your all your performance needs! The Raptor 4G is the entry level fuel system that delivers performance on a budget. This pump is fully adjustable from 7 to 70psi. Prevent fuel starvation with the Raptor 4G!

  • Built-in adjustable diaphragm regulator
  • No return line needed
  • Flow rates of 100 gph
  • Easy installation

The new Raptor 4G takes design elements from the AirDog II-4G using the same 4 bearing motor assembly design with an intermediate shaft allowing for self-alignment of the gerotor resulting in lower amp loads on the motor. The outcome is an incredibly quiet and dependable fuel pump. The new Raptor 4G will feature a built in adjustable diaphragm style regulator, which allows for more consistent output pressures.

Raptor Lift Pump Installation Kit

Installation Kit Includes:

  • Relay Control Wiring Harness
  • Fuel Module Up-Grade (when required)
  • All Fuel Fittings Required
  • Mounting Hardware
  • 1/2" ID Fuel Line
  • Bracket & Spacer
  • Plastic Ties
  • Installation Manual


  • Looking for a lift pump to supply fuel to 671 turbo Detroit’s fuel will be pushed to mechanical pumps on motors. What is your suggestions?

    Russell | 4/5/2020

    What is the needed supply pressure for those pumps?  These Raptors can usually push up to 40 psi on some models,  but we do have class 8 offerings too.  Give us a call at 866 737 4966
