PSC BIG BORE XD Series with Cylinder Assist Steering Gearbox - 94-02 Ram 5.9L Cummins

Product Name: PSC BIG BORE XD Series with Cylinder Assist Steering Gearbox - 94-02 Ram 5.9L Cummins
Manufacturer: PSC Steering
Manufacturer Part #: SG851R
Thoroughbred Diesel Part #: PSCSG851R
Fitment Notes: 1994-2002 Ram 5.9L Cummins

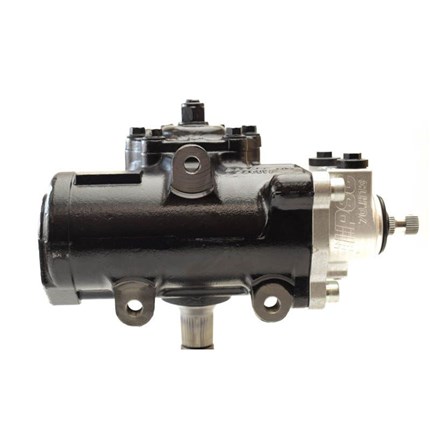

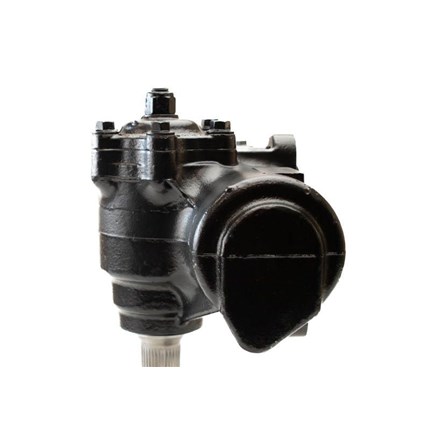

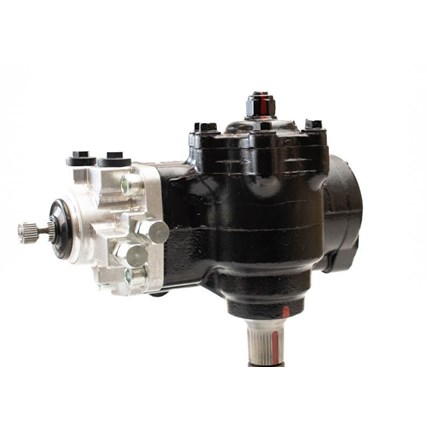

This PSC Motorsports Big Bore Steering Box with Cylinder Assist Ports for the 1994 - 2002 Dodge Ram 2500/3500 is a NEW replacement unit for the problem prone original Dodge steering.

The PSC Motorsports Dodge XD steering gear box was designed around the 2010 and newer Dodge XD platform and modified for a direct bolt-in installation using the OEM pressure and return lines and OEM 36 spline pitman arm.

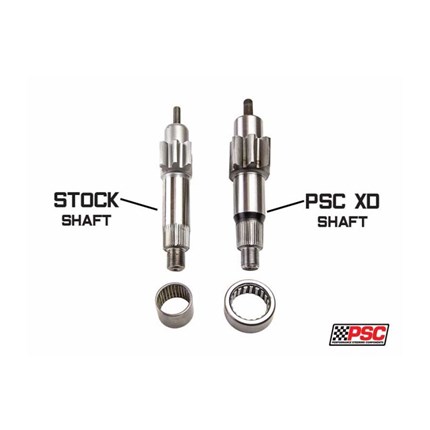

The failure prone lower bearing size has been increased from 35mm to 45mm to prevent excessive side-to-side deflection of the sector shaft, the main cause of "Dodge steering "wander".

NOTE:

• PSC is not aware of any aftermarket steering gearbox braces, including the SB300K, that are compatible with the SG853/R products.
• This product is not compatible with aftermarket steering gear brace solutions

PSC Steering Features:

• -6AN Male Cylinder Assist Ports for connection to a PSC Steering Assist Cylinder
• 45mm Diameter Sector Shaft and Larger Support Bearing
• 16:1 Steering Ratio - 3.25 Turns Lock-To-Lock
• Compatible with Factory and Aftermarket Pitman Arms
• Compatible with OEM High-Pressure and Return Line Hose Assemblies
• Eiminates the need for aftermarket steering braces
• For more information on PSC Steering call us at 1-859-737-4966
