Show your support with a Thoroughbred Diesel t-shirt, sweatshirt, or sticker decal.
Thoroughbred Sku #: PPE125068500 Manufacturer Sku #: 125068500
$80.99
2019 - 2021 Chevy Silverado 2500
2019 - 2021 Chevy Silverado 3500
2019 - 2021 GMC Sierra 2500
2019 - 2021 GMC Sierra 3500
2019 - 2023 Chevy Silverado 1500
2019 - 2023 GMC Sierra 1500
2022 - 2022 Chevy 2500
2022 - 2022 GMC 2500
2023 - 2023 Chevy Silverado 2500 HD
2023 - 2023 Chevy Silverado 3500 HD
2023 - 2023 GMC Sierra 2500 HD
Product Name: PPE Transmission Fluid Thermal Bypass Valve - 19-23 Silverado/Sierra 1500/2500/3500 with 6L80/6L90 Transmission (1/2" Trans Line) Manufacturer: PPE Manufacturer Part #: 125068500 Thoroughbred Diesel Part #: PPE125068500 Fitment Notes: 19-23 Silverado/Sierra 1500/2500/3500 with 6L80/6L90 Transmission (1/2" Trans Line)

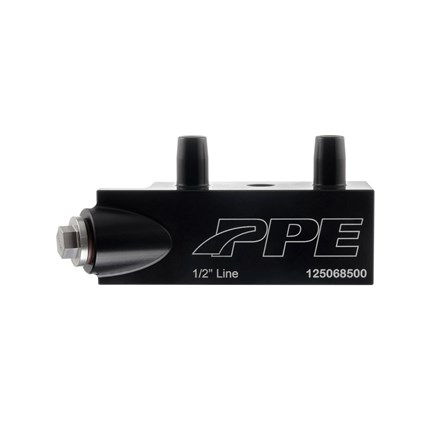

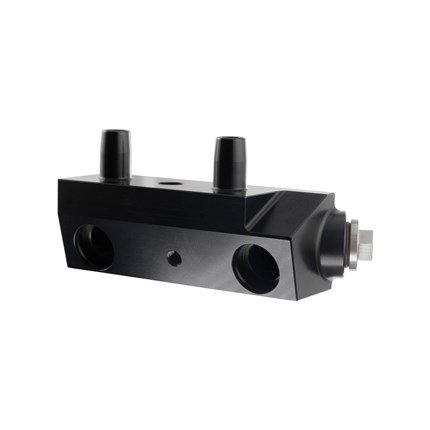

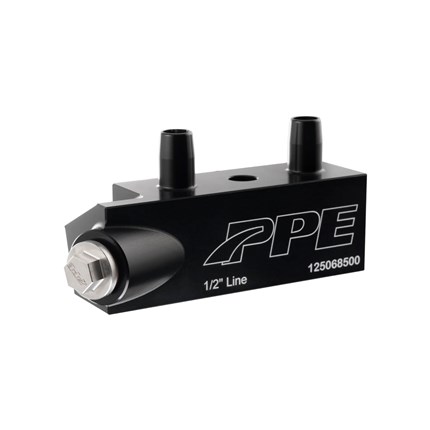

GM 6L90 Transmission Fluid Thermal Bypass Valve
Add another measure of protection and increase fluid flow to the transmission cooler. Increase cooling capacity with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve for the GM 6L80/6L90 6-Speed transmission.
The OEM part has restrictive internal passages. When the OEM valve fails in the open position, transmission fluid doesn’t reach your cooler. This can be caused by mechanical failure or debris. The result of stock valve failure can cause the transmission to dangerously overheat. Without properly cooled transmission fluid, the demands of towing and rigorous stop-and-go driving conditions shorten the life of transmission components. The PPE Bypass Valve eliminates the extremely restrictive factory valve, maximizing fluid flow to and from the transmission cooler.
For further protection, a neodymium magnet equipped service plug with O-ring seal has been added. The removable plug traps ferrous debris and can be easily accessed to remove particles from the system. The factory bypass valve does not have this feature.
OEM Equivalent P/N: 85584365 (replaces 84443931, 85563685) 84443931; 84963104; 84969051; 85103027; 85510570; 85532822)
PPE Transmission Fluid Thermal Bypass Valve Features:
