PPE Heavy-Duty Cast Aluminum Engine Oil Pan (Black) - 19-25 GM Silverado/Sierra 1500 2.7L L4 Gas

Product Name: PPE Heavy-Duty Cast Aluminum Engine Oil Pan (Black) - 19-25 GM Silverado/Sierra 1500 2.7L L4 Gas
Manufacturer: PPE
Manufacturer Part #: 114055020
Thoroughbred Diesel Part #: PPE114055020
Fitment Notes: 2019-2025 GM Silverado/Sierra 1500 2.7L L4 Gas

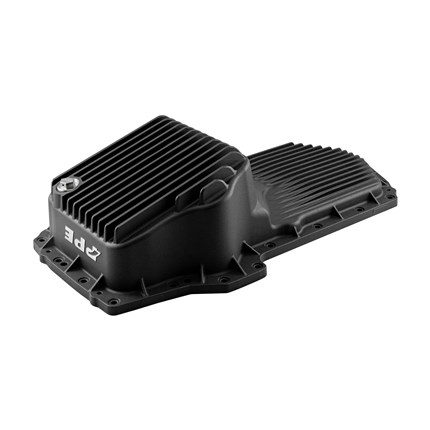

Cast Aluminum Engine Oil Pan

Upgrade from the stock stamped-steel oil pan to the PPE Heavy-Duty High-Capacity Cast Aluminum Oil Pan for complete oil drainage, improved durability, enhanced cooling, and superior engine protection.

During each regular oil change, the stock stamped-steel pan retains a significant amount of dirty oil sludge which contaminates the fresh engine oil being added right away. The PPE Pan is engineered to ensure complete oil drainage, preventing contamination of fresh motor oil and ensuring clean, efficient lubrication from the start. Cast from high-grade A356.0-T6 aluminum alloy, the PPE oil pan offers 3 quarts of additional oil capacity, ensuring long-lasting heat management and performance. The external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your engine cool under pressure. These fins also add strength to the bottom of the pan and enhance rigidity.

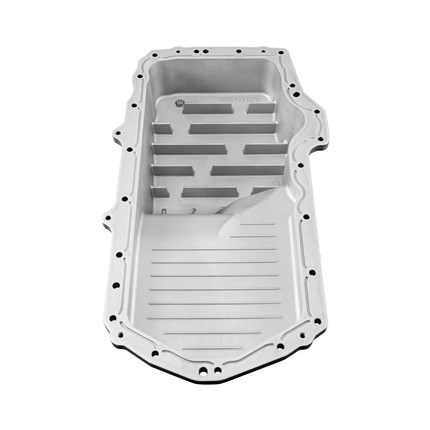

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup. Together with the longitudinal external fins, they form a stiff, Cross-Bracing structure, distributing loads better and increasing impact resistance. An ultra-strong 17-4 stainless steel drain plug is included. It’s equipped with a powerful high-temperature rated neodymium magnet to pull ferrous debris out of your engine oil, providing additional protection to engine components and extending oil life.

PPE Heavy-Duty Cast Aluminum Engine Oil Pan Features:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by 3 quarts for higher thermal capacity

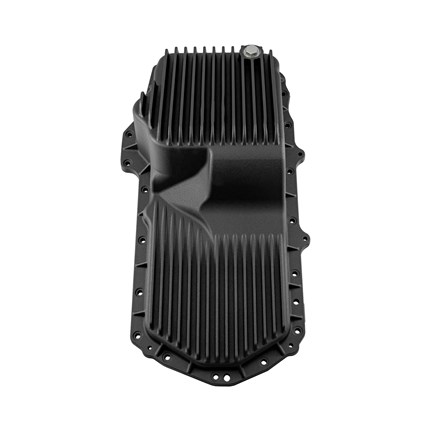

• Tall 5/8-inch external fins improve heat dissipation, lower oil temperature, and increase rigidity
• Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Two sets of external cooling fins along the bottom of the pan, increasing external surface area and enhancing heat dissipation
• Cast-in gussets for additional upper oil pan flange support and increased rigidity
• Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal.
• Stainless steel drain plug with built-in high temperature rated neodymium magnet
• LIFETIME LIMITED WARRANTY
• For more information on PPE call us at 1-859-737-4966
